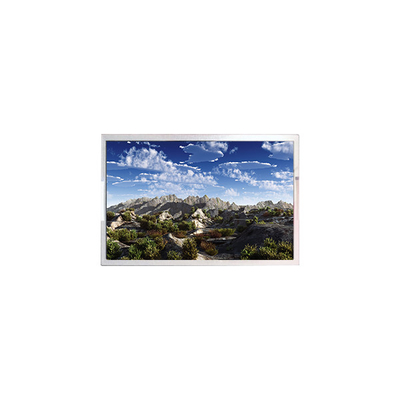

DV150X0M-N17 15.0 inch 1024*768 tft LCD display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV150X0M-N17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DV150X0M-N17 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Work Mode: | HADS, Normally Black, Transmissive | Color Depth: | 16.7M 72% NTSC |
| Backlight: | WLED [12S4P] , 50K Hours , With LED Driver | Used For: | Industrial /Outdoor High Brightness |
Product Description
DV150X0M-N17 15.0 inch 1024*768 tft LCD display panel
DV150X0M-N17 LCD Panel Product details :
| Brand | BOE |
| Model P/N | DV150X0M-N17 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 306.5(W)×230.1(H) mm |
| Outline Dim. | 326.5(W)×253.5(H)×12.9(D) mm |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 1500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [12S4P] , 50K hours , With LED Driver |
| Weight | 800g |
| Designed For | Industrial /Outdoor High Brightness |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
Important Note Regarding DV150X0M-N17 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
DV150X0M-N17 LCD Panel Shipping and Package :
Shipping Details for DV150X0M-N17 LCD Screen:
Rest assured, your item is in excellent condition and will be carefully prepared for shipping.
All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.
Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.
Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.
While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.
DV150X0M-N17 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of DV150X0M-N17 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of DV150X0M-N17 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods DV150X0M-N17 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of DV150X0M-N17 ?
A: Of course!sample order is welcome !
