products details

Home > Products >

LCD Screen Display Panel

7.0 inch LA070WV2-TD03 800*480 LCD Screen For Automotive Display

All Category

Floor Standing Digital Signage

Stretched Bar LCD Display

chance

info@yongs-hk.com

86-18575563918

Contact Now

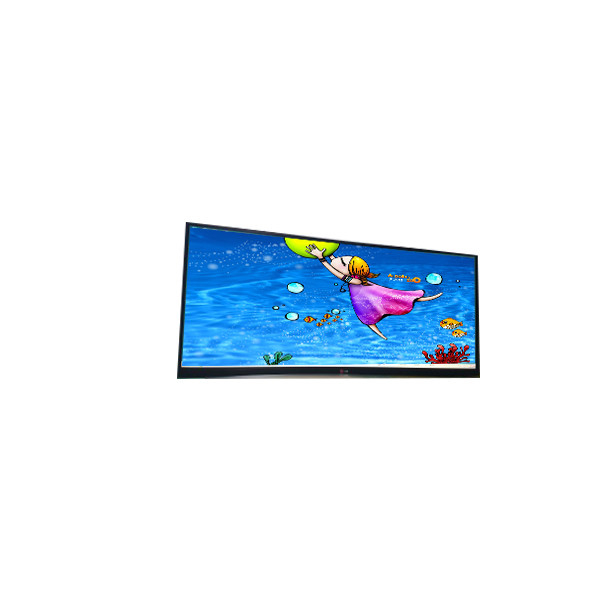

7.0 inch LA070WV2-TD03 800*480 LCD Screen For Automotive Display

Brand Name:	LG Display
Model Number:	LA070WV2-TD03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LA070WV2-TD03

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Application:

Automotive Display

Frame Rate:

Response Time:

6/9 (Typ.)(Tr/Td)

Viewing Angle:

70/70/60/50 (Typ.)(CR≥10)

Supply Ability:

100000 Unit/Units per Month

Product Description

7.0 inch LA070WV2-TD03 800*480 LCD Screen For Automotive Display

LA070WV2-TD03 LCD Panel Product details :

Brand	LG Display
Model P/N	LA070WV2-TD03
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.45(W)×93.24(H) mm
Outline Dim.	168.6(W)×103.85(H) ×22.95(D) mm
Treatment	Clear, Hard coating (3H)
Luminance	620 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	6/9 (Typ.)(Tr/Td)
Viewing Angle	70/70/60/50 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 64% NTSC
Light Source	5S2P WLED , 10K hours , Without Driver
Weight	215/220g (Typ./Max.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit) , 40 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.2G (21.56 m/s²)

LA070WV2-TD03 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

LA070WV2-TD03 LCD Panel Shipping and Package :

7.0 inch LA070WV2-TD03 800*480 LCD Screen For Automotive Display 0

LA070WV2-TD03 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

LA070WV2-TD03 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

LA070WV2-TD03 LCD Panel FAQ :

Q: Do you accept sample orders of LA070WV2-TD03 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LA070WV2-TD03 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods LA070WV2-TD03 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
