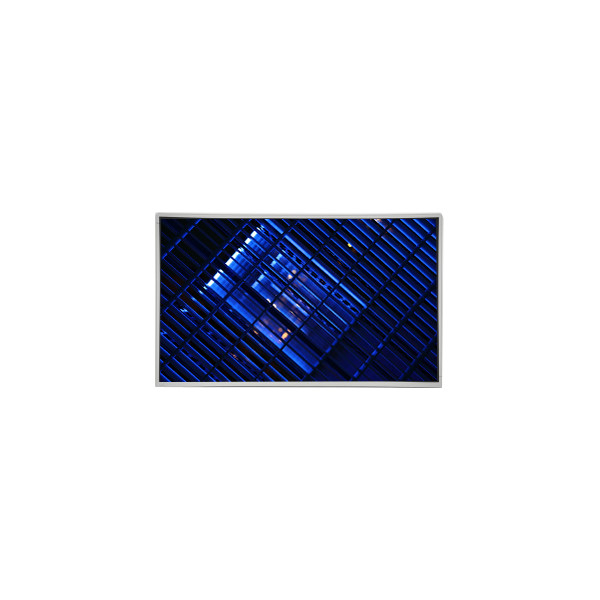

M320QAN02.1 32.0 inch 3840*2160 LCD screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M320QAN02.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M320QAN02.1 | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 3840(RGB)×2160, UHD 137PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 708.48(W)×398.52(H) Mm |
| Work Mode: | AHVA, Normally Black, Transmissive | Color Depth: | 1.07B 95%DCI-P3 |
| Backlight: | KSF LED [11S4P×2CN], 30K Hours, W/O Driver | Used For: | Desktop Monitor |
Product Description
M320QAN02.1 32.0 inch 3840*2160 LCD screen panel
M320QAN02.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | M320QAN02.1 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 137PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 708.48(W)×398.52(H) mm |
| Bezel Opening | - |
| Outline Dim. | 721.68(H)×417.93(V)×17.37(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 12 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 1.07B 95%DCI-P3 |
| Light Source | KSF LED [11S4P×2CN], 30K hours, W/O Driver |
| Weight | 3.90Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (8 Lanes) , HBR1 (2.7G/lane) , 51 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Important Note Regarding M320QAN02.1 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
M320QAN02.1 LCD Panel Shipping and Package :
Shipping Details for M320QAN02.1 LCD Screen:
Rest assured, your item is in excellent condition and will be carefully prepared for shipping.
All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.
Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.
Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.
While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.
M320QAN02.1 LCD Panel FAQ :
Q: Can I pay my order of M320QAN02.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of M320QAN02.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of M320QAN02.1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of M320QAN02.1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Contact for M320QAN02.1 LCD Screen:
At our establishment, we prioritize our reputation, recognizing the significance of trust in online transactions. Should you find yourself dissatisfied with your order, we encourage you to reach out to us, and we will diligently collaborate with you to address any concerns until they are resolved to your contentment. Please anticipate a response to all inquiries within 1-3 days, as we strive to provide timely assistance and support to our valued customers.
