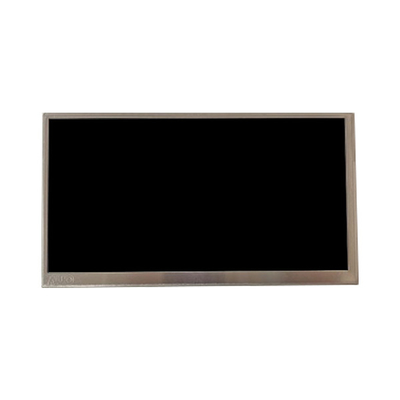

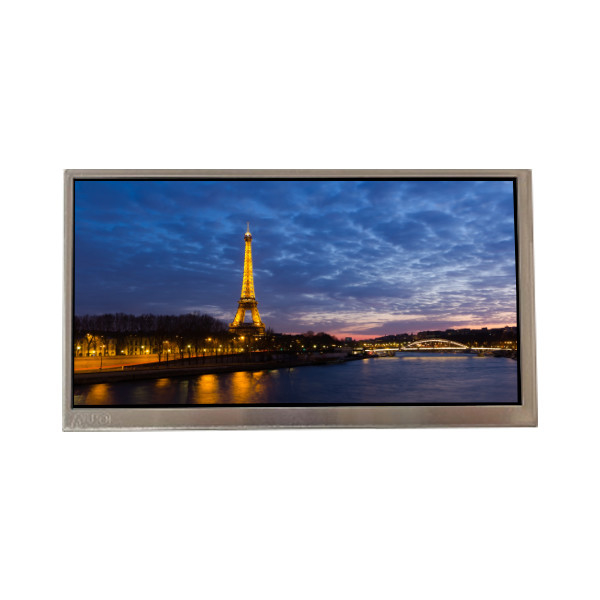

C101EAT03.1 10.1 inch 1280*720 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C101EAT03.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C101EAT03.1 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×720, XGA 145PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 223.68(W)×125.82(H) Mm |
| Work Mode: | AHVA, Normally Black, Transmissive | Color Depth: | 16.7M |
| Backlight: | 8S2P WLED , 10K Hours , No Driver | Used For: | Automotive Display |
Product Description
C101EAT03.1 10.1 inch 1280*720 LCD Display Panel
C101EAT03.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | C101EAT03.1 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, XGA 145PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 223.68(W)×125.82(H) mm |
| Bezel Opening | - |
| Outline(mm) | 281.788(W)×158.6(H)×11.32(D) |
| Luminance | 480 (Min.)(cd/m²) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M |
| Mass | 460g (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 24%), Hard coating (3H), Reflection 8.0% (Max.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | AHVA, Normally Black, Transmissive |
| Response | 20/20 (Max.)(Tr/Td) ms |
| Backlight | 8S2P WLED , 10K hours , No Driver |
| Used for | Automotive Display |
| Touchscreen | PCAP |
| Signal Type | LVDS (1 ch, 8-bit) + SPI, 40 pins FPC |
| Voltage Supply | 3.3/3.3V (Typ.)(VDD/VDDA) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
Important Note Regarding C101EAT03.1 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
C101EAT03.1 LCD Panel Shipping and Package :
Shipping Details for C101EAT03.1 LCD Screen:
Rest assured, your item is in excellent condition and will be carefully prepared for shipping.
All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.
Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.
Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.
While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.
C101EAT03.1 LCD Panel FAQ :
Q: How to order lcd panel C101EAT03.1 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will my order 10.1 inch lcd panel C101EAT03.1 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 10.1 inch lcd panel C101EAT03.1 before shipping?
A: Don't Worry , Our C101EAT03.1 was tested ok before shipping
Q: What happen if C101EAT03.1 I received can't work ?
A: Our lcd C101EAT03.1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Contact for C101EAT03.1 LCD Screen:
At our establishment, we prioritize our reputation, recognizing the significance of trust in online transactions. Should you find yourself dissatisfied with your order, we encourage you to reach out to us, and we will diligently collaborate with you to address any concerns until they are resolved to your contentment. Please anticipate a response to all inquiries within 1-3 days, as we strive to provide timely assistance and support to our valued customers.
