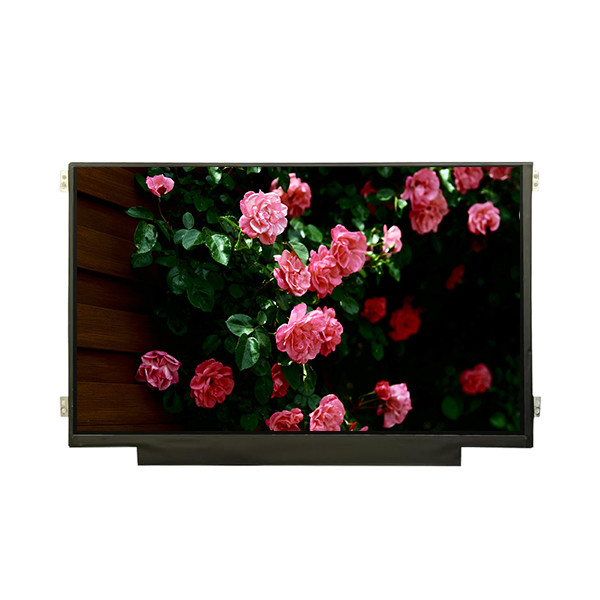

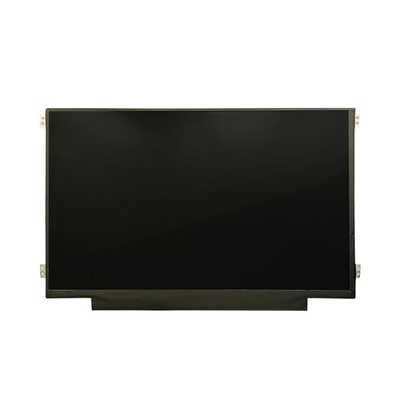

B116XTN02.0 11.6 inch tft lcd screen 1366*768 latop panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XTN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XTN02.0 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Color Depth: | 262K 45%NTSC |
| Backlight: | WLED , 15K Hours , With LED Driver | Used For: | Laptop、Netbook PC |
Product Description
B116XTN02.0 11.6 inch tft lcd screen 1366*768 latop panel
B116XTN02.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B116XTN02.0 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Size | 278(W)×168(H)×3(D) mm |
| Brightness | 200 cd/m² (Typ.) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
| Application | Laptop,Netbook PC |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
Important Note Regarding B116XTN02.0 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
B116XTN02.0 LCD Panel Shipping and Package :
Shipping Details for B116XTN02.0 LCD Screen:
Rest assured, your item is in excellent condition and will be carefully prepared for shipping.
All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.
Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.
Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.
While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.
B116XTN02.0 LCD Panel FAQ :
Q: How can I trace my order of B116XTN02.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods B116XTN02.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of B116XTN02.0 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B116XTN02.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Contact for B116XTN02.0 LCD Screen:
At our establishment, we prioritize our reputation, recognizing the significance of trust in online transactions. Should you find yourself dissatisfied with your order, we encourage you to reach out to us, and we will diligently collaborate with you to address any concerns until they are resolved to your contentment. Please anticipate a response to all inquiries within 1-3 days, as we strive to provide timely assistance and support to our valued customers.
