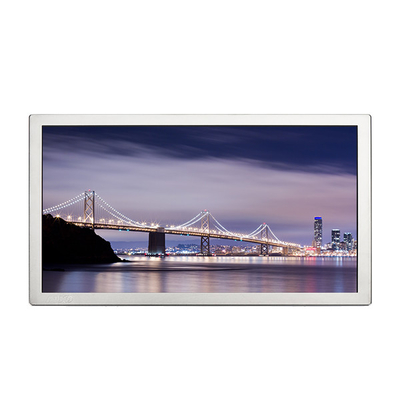

15.6 inch B156HAN04.0 HWCA 1080p LCD Screen For Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156HAN04.0 HWCA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HAN04.0 HWCA | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Active Area: | 344.16(W)×193.59(H) Mm | Outline Dim.: | 359.5(W)×223.8(H) ×3.4(D) Mm |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Display Mode: | AHVA, Normally Black, Transmissive |
| Support Color: | 262K 45% NTSC | Designed For: | Laptop |
Product Description
15.6 inch B156HAN04.0 HWCA 1080p LCD Screen For Laptop
B156HAN04.0 HWCA LCD Panel Product details :
| Brand | AUO |
| Model P/N | B156HAN04.0 HWCA |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline Dim. | 359.5(W)×223.8(H) ×3.4(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | 9S4P WLED , 15K hours , With LED Driver |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
B156HAN04.0 HWCA LCD Panel Shipping and Package :
We take great pride in ensuring that our products are packaged and shipped with the utmost care. However, sometimes situations beyond our control can lead to an item arriving damaged. If this happens, there's no need to worry. We will make sure that the issue is resolved as quickly as possible so that you can enjoy your purchase without any further delays or stress.
Our team is committed to providing excellent customer service, and we understand that returning a damaged item can be frustrating. But rest assured, we will be there to guide you through the process and make it as smooth and hassle-free as possible. Our goal is to make sure that you are completely satisfied with your purchase, and we won't stop until that's achieved.
So, in the unlikely event that your item arrives damaged, don't hesitate to contact us. We'll work with you to find the best solution, whether that's a refund or a replacement product. And, most importantly, we'll do so with a smile and a positive attitude. After all, our top priority is your satisfaction, and we'll do whatever it takes to make sure that you're happy with your experience shopping with us.
B156HAN04.0 HWCA LCD Panel FAQ :
Q: Can you tested the B156HAN04.0 HWCA before shipping ?
A: Of course , our lcd panel B156HAN04.0 HWCA was Strictly tested before shipping.
Q: How to order B156HAN04.0 HWCA ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel B156HAN04.0 HWCA received can't work ?
A:B156HAN04.0 HWCA was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
