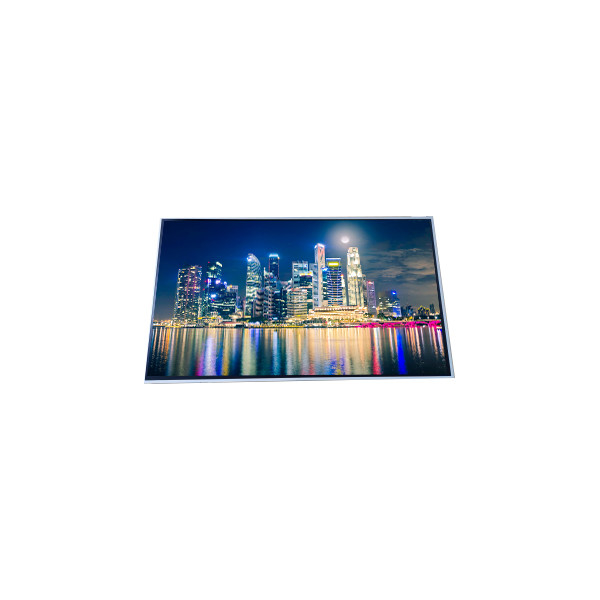

P424KVN01.0 New 42.4 inch LCD Panel 3840*320 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P424KVN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P424KVN01.0 | Diagonal Size: | 42.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 3840(RGB)×320 90PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1073.8(W)×89.5(H) Mm |
| Display Mode: | AMVA3, Normally Black, Transmissive | Display Colors: | 1.07B 72%NTSC |
| Signal Interface: | WLED, 50K Hours, With LED Driver | Used For: | Digital Signage、Outdoor High Brightness、Stretched Bar LCD |
Product Description
P424KVN01.0 New 42.4 inch LCD Panel 3840*320 LCD Screen
P424KVN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | P424KVN01.0 |
| Diagonal Size | 42.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×320 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1073.8(W)×89.5(H) mm |
| Bezel Opening | 1076.78(W)×92.48(H) mm |
| Outline (mm) | 1096.58×112.28×26 (H×V×D) |
| Treatment | Antiglare (Haze 28%) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AMVA3, Normally Black, Transmissive |
| Color Depth | 1.07B 72%NTSC |
| Backlight | WLED, 50K hours, With LED Driver |
| Mass | 1.90Kgs (Typ.) |
| Used for | Digital Signage,Outdoor High Brightness,Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , Connector51 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
P424KVN01.0 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
P424KVN01.0 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
P424KVN01.0 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
P424KVN01.0 LCD Panel Shipping and Package :
P424KVN01.0 LCD Panel FAQ :
Q: How can I trace my order of P424KVN01.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of P424KVN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of P424KVN01.0 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of P424KVN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
