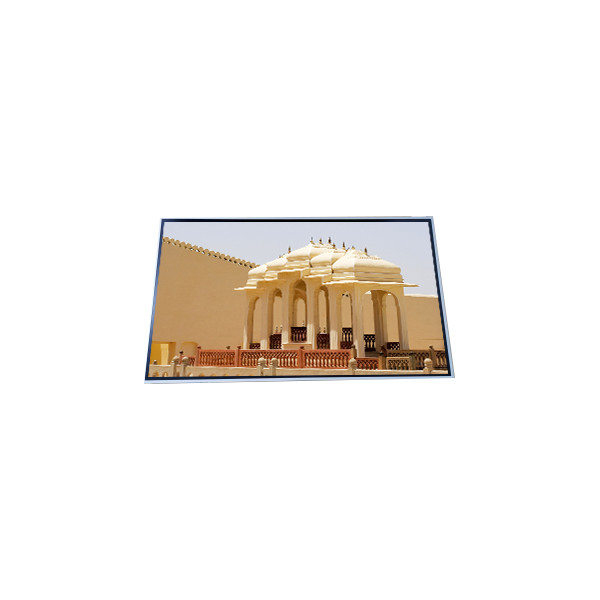

P460HVN05.2 46.0 inch LCD Display Panel 1080p LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P460HVN05.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P460HVN05.2 | Diagonal Size: | 46" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 47PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1018.08(W)×572.67(H) Mm |
| Display Mode: | AMVA3, Normally Black, Transmissive | Display Colors: | 16.7M/1.07B 72%NTSC |
| Signal Interface: | WLED, 50K Hours, With LED Driver | Used For: | Digital Signage、Outdoor High Brightness |
Product Description
P460HVN05.2 46.0 inch LCD Display Panel 1080p LCD Screen Module
P460HVN05.2 LCD Panel Product details :
| Brand | AUO |
| Model P/N | P460HVN05.2 |
| Diagonal Size | 46" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 47PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1018.08(W)×572.67(H) mm |
| Bezel Opening | 1024.5(W)×579.1(H) mm |
| Outline Dim. | 1044.1(H)×598.7(V)×59.9(D)mm |
| Treatment | Antiglare (Haze 28%) |
| Luminance | 2500 cd/m² (Typ.) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AMVA3, Normally Black, Transmissive |
| Support Color | 16.7M/1.07B 72%NTSC |
| Light Source | WLED, 50K hours, With LED Driver |
| Weight | 11.0Kgs (Typ.) |
| Designed For | Digital Signage,Outdoor High Brightness |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8/10-bit), 51 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
P460HVN05.2 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
P460HVN05.2 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
P460HVN05.2 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
P460HVN05.2 LCD Panel Shipping and Package :
P460HVN05.2 LCD Panel FAQ :
Q: Can you test the lcd panel P460HVN05.2 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order P460HVN05.2 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order P460HVN05.2 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd P460HVN05.2 ?
A: 90 days .
