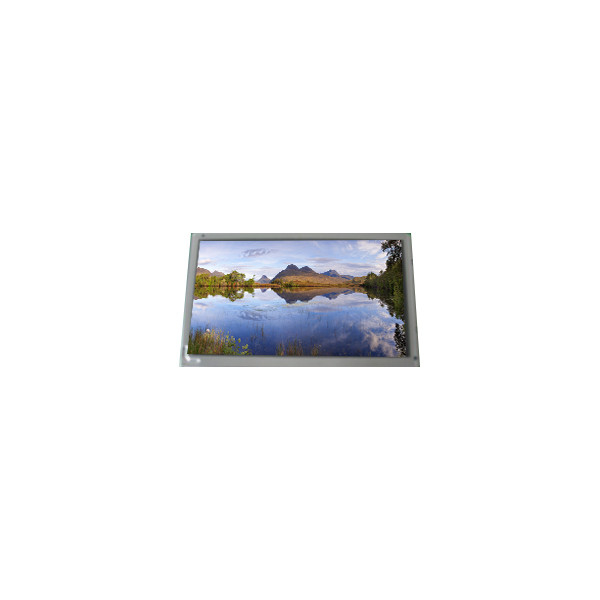

LQ080C0006 8.0 inch LCD Display Panel WLED TFT LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ080C0006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ080C0006 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 116PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 174(W)×104.4(H) Mm |
| Application: | Outdoor High Brightness、Automotive Display | Touch Screen: | Without |
Product Description
LQ080C0006 8.0 inch LCD Display Panel WLED TFT LCD Screen
LQ080C0006 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ080C0006 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 174(W)×104.4(H) mm |
| Bezel Opening | 178(W)×107.4(H) mm |
| Outline Dim. | 189.4(H)×119.4(V)×14.6(D) mm |
| Treatment | Antiglare, Antireflection |
| Luminance | 770 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 40 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | New mode 2, Normally Black, Transmissive |
| Support Color | 262K/16.7M 72%NTSC |
| Light Source | WLED [6S3P], 10K hours, W/O Driver |
| Weight | 280g (Max.) |
| Designed For | Outdoor High Brightness,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit), 32 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| LQ080C0006 8.0 inch LCD Display Panel WLED TFT LCD Screen | |
LQ080C0006 LCD Screen Pre-Order Information :
Model Compatibility: It is crucial to confirm that your machine model is compatible with this LCD screen. If you are unsure about the compatibility, please contact us for assistance. We are here to help you verify and ensure that you are ordering the correct screen for your device.
Contact Information: To avoid any delivery issues, please double-check and confirm your phone number, address, and zip code before placing your order. Accurate contact information is essential for timely and successful delivery.
By following these steps, you can help ensure that your order process is efficient and that the product you receive is exactly what you need. If you have any questions or need further clarification, our customer service team is available to assist you.
LQ080C0006 LCD Panel Shipping and Package :
LQ080C0006 LCD Screen Shipping Information :
Prompt Shipping: After receiving your order, we will process and ship it as soon as possible. We aim to dispatch your item quickly to minimize any waiting time.
Logistics Options: Within the scope of available options, we will choose the safest and fastest logistics method to deliver your order. Our goal is to ensure that your LCD screen arrives in excellent condition and in a timely manner.
Specified Logistics: If you have a preferred logistics provider or specific shipping requirements, please inform us in advance. We will do our best to accommodate your request and ensure that your shipping preferences are met.
LQ080C0006 LCD Screen Service :
Customer Satisfaction: Your satisfaction is our priority. If you are not completely satisfied with your purchase, please contact us within 30 days of receiving the item. We are committed to resolving any issues you may have.
Return Process: Should you decide to return the product, it is important to contact us before shipping it back. Our team will provide you with detailed instructions on how to properly return the item to ensure a smooth and hassle-free process.
Refund Policy: Once we receive the returned item, we will promptly process a full refund. We aim to make the refund process as efficient as possible, ensuring that you receive your money back without unnecessary delays.
LQ080C0006 LCD Panel FAQ :
Q: Do you accept sample orders of LQ080C0006 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LQ080C0006 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LQ080C0006 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LQ080C0006 ?
A: We accept T/T , Paypal , western union .
