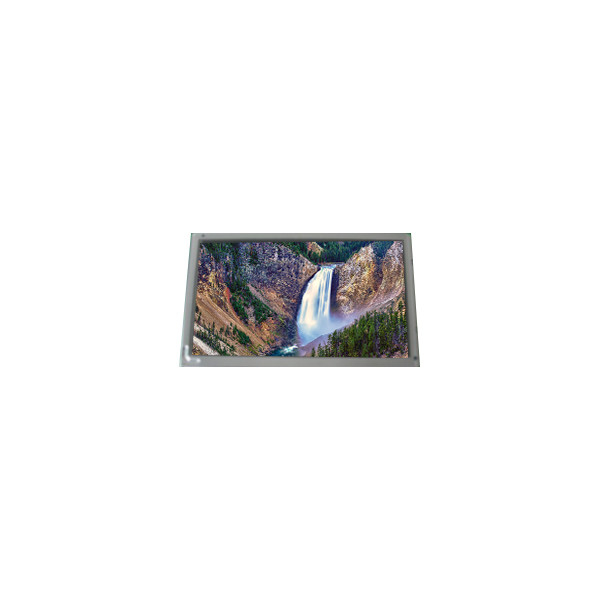

LQ072K1LA03 7.2 inch 1280*768 LCD Module LVDS LCD Screen

Brand Name:	Sharp
Model Number:	LQ072K1LA03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ072K1LA03

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×768, WXGA 206PPI

Pixel Format:

RGB Vertical Stripe

Outline Dim:

157.44(W)×94.464(H) Mm

Designed For:

MID UMPC

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ072K1LA03 7.2 inch 1280*768 LCD Module LVDS LCD Screen

LQ072K1LA03 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ072K1LA03
Diagonal Size	7.2"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA 206PPI
Pixel Format	RGB Vertical Stripe
Active Area	157.44(W)×94.464(H) mm
Bezel Opening	161.1(W)×98.0(H) mm
Outline (mm)	185×115.9×7.5 (H×V×D)
Treatment	Glare (Haze 0%), Hard coating (2H), Antireflection
Luminance	235 cd/m² (Typ.)
Contrast Ratio	150 : 1 (Min.) (TM)
Viewing Angle	60/60/45/60 (Typ.)(CR≥10)
Response	45 (Typ.)(Tr+Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	8S4PWLED, 10K hours, No Driver
Mass	140/155g (Typ./Max.)
Used for	MID UMPC
Refresh Rate	-
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit), Connector14 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LQ072K1LA03 7.2 inch 1280*768 LCD Module LVDS LCD Screen

LQ072K1LA03 LCD Screen Pre-Order Information :

Model Compatibility: It is crucial to confirm that your machine model is compatible with this LCD screen. If you are unsure about the compatibility, please contact us for assistance. We are here to help you verify and ensure that you are ordering the correct screen for your device.

Contact Information: To avoid any delivery issues, please double-check and confirm your phone number, address, and zip code before placing your order. Accurate contact information is essential for timely and successful delivery.

By following these steps, you can help ensure that your order process is efficient and that the product you receive is exactly what you need. If you have any questions or need further clarification, our customer service team is available to assist you.

LQ072K1LA03 LCD Panel Shipping and Package :

LQ072K1LA03 LCD Screen Shipping Information :

Prompt Shipping: After receiving your order, we will process and ship it as soon as possible. We aim to dispatch your item quickly to minimize any waiting time.

Logistics Options: Within the scope of available options, we will choose the safest and fastest logistics method to deliver your order. Our goal is to ensure that your LCD screen arrives in excellent condition and in a timely manner.

Specified Logistics: If you have a preferred logistics provider or specific shipping requirements, please inform us in advance. We will do our best to accommodate your request and ensure that your shipping preferences are met.

LQ072K1LA03 LCD Screen Service :

Customer Satisfaction: Your satisfaction is our priority. If you are not completely satisfied with your purchase, please contact us within 30 days of receiving the item. We are committed to resolving any issues you may have.

Return Process: Should you decide to return the product, it is important to contact us before shipping it back. Our team will provide you with detailed instructions on how to properly return the item to ensure a smooth and hassle-free process.

Refund Policy: Once we receive the returned item, we will promptly process a full refund. We aim to make the refund process as efficient as possible, ensuring that you receive your money back without unnecessary delays.

LQ072K1LA03 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of LQ072K1LA03 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of LQ072K1LA03 ?

A: Of course!sample order is welcome !

Q: How to make payment of LQ072K1LA03 ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of LQ072K1LA03 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
