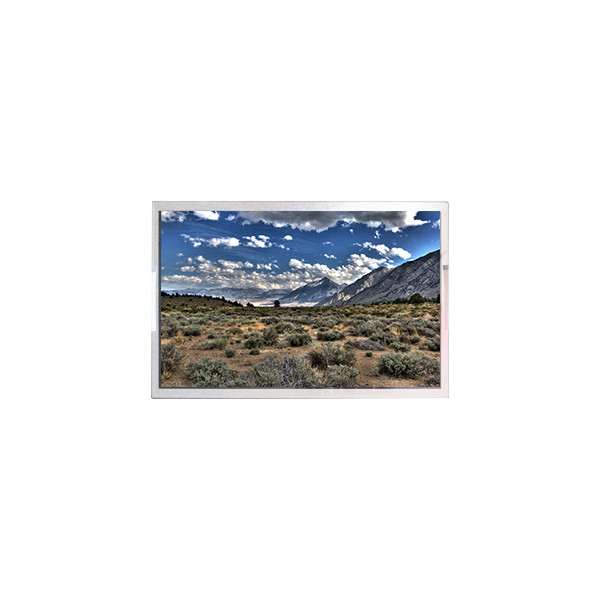

M238DAN01.8 CELL 23.8 inch LCD Display Panel 2K LCD Screen Module

Brand Name:	AUO
Model Number:	M238DAN01.8 CELL
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238DAN01.8 CELL

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

526.85(W)×296.35(H) Mm

Display Mode:

AHVA, Normally Black, Transmissive

Display Colors:

16.7M 99% SRGB

Signal Interface:

No B/L

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M238DAN01.8 CELL 23.8 inch LCD Display Panel 2K LCD Screen Module

M238DAN01.8 CELL LCD Panel Product details :

Brand	AUO
Model P/N	M238DAN01.8 CELL
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	526.85(W)×296.35(H) mm
Bezel Opening	-
Outline Dim.	534.64(H)×308.46(V) ×1.31(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1300:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	3.99% (Typ.)(with Polarizer)
Support Color	16.7M 99% sRGB
Light Source	No B/L
Weight	520g (Typ.)
Designed For	Desktop Monitor
Frame Rate	100Hz
D-IC Detail	COF Built-in 8 source chips
Touch Panel	Without
Interface Type	LVDS (4 ch, 8-bit) , 70 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M238DAN01.8 CELL LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

M238DAN01.8 CELL LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

M238DAN01.8 CELL LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

M238DAN01.8 CELL LCD Panel Shipping and Package :

M238DAN01.8 CELL LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of M238DAN01.8 CELL ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of M238DAN01.8 CELL ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of M238DAN01.8 CELL ?

A: Of course!sample order is welcome !
