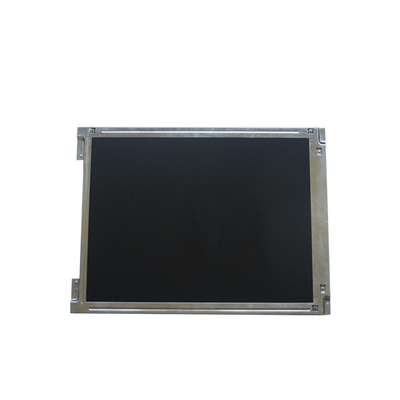

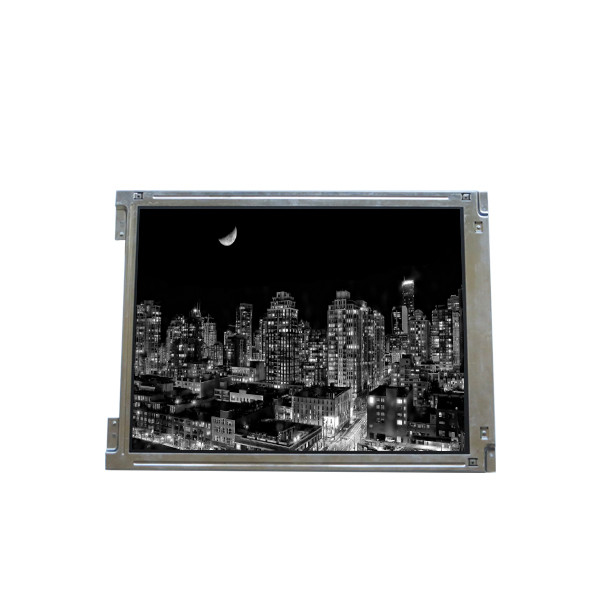

L150X1M-HB New 15.0 inch 1024*768 TFT LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | L150X1M-HB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | L150X1M-HB | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Display Mode: | TN, Normally White, Transmissive | Display Colors: | 16.7M 67%NTSC |
| Signal Interface: | CCFL [4 Pcs], W/O Driver | Used For: | Desktop Monitor |
Product Description
L150X1M-HB New 15.0 inch 1024*768 TFT LCD Screen Display
L150X1M-HB LCD Panel Product details :
| Brand | ACER |
| Model P/N | L150X1M-HB |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 308.1(W)×232.1(H) mm |
| Outline Dim. | 352.5(H)×263.5(V)×16.5(D) mm |
| Treatment | - |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 11/24 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 67%NTSC |
| Light Source | CCFL [4 pcs], W/O Driver |
| Weight | 1.40Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (2 ch, 8-bit), 80 pinsConnector |
| Power Supply | 3.3V (Typ.)(VDD) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
L150X1M-HB LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
L150X1M-HB LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
L150X1M-HB LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
L150X1M-HB LCD Panel Shipping and Package :
L150X1M-HB LCD Panel FAQ :
Q: Can You declare my order of L150X1M-HB at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of L150X1M-HB ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of L150X1M-HB ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order L150X1M-HB now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
