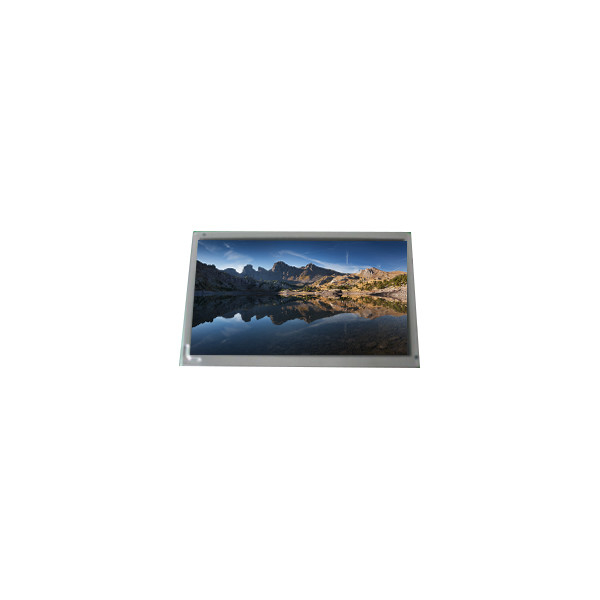

LQ070Y5DG02 380 cd/m2 LCD Display Screen CCFL Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ070Y5DG02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ070Y5DG02 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 134PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 156(W)×82.8(H) Mm |
| Application: | Automotive Display | Support Color: | 262K |
Product Description
LQ070Y5DG02 380 cd/m2 LCD Display Screen CCFL Module
LQ070Y5DG02 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ070Y5DG02 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 156(W)×82.8(H) mm |
| Bezel Opening | 157.7(W)×84.75(H) mm |
| Outline Size | 168(W)×94(H)×11.75(D) mm |
| Brightness | 380 cd/m² (Typ.) |
| Viewing Angle | 65/65/60/65 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K |
| Frequency | 60Hz |
| Weight | 185g (Max.) |
| Surface | Antiglare |
| Contrast Ratio | 100:1 (Min.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Lamp Type | 1 pcs CCFL , 10K hours , Without Driver |
| Touch Screen | Without |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 50 pinsFPC |
| Input Voltage | 5.3/2.7/15/-12.0/-17.4V (Typ.)(VSHA/VSHD/VDD/VEEDC/VSS) |
| Environment | Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 85 °C; Vibration Level: 3.0G (29.4 m/s²) |
| LQ070Y5DG02 380 cd/m2 LCD Display Screen CCFL Module | |
