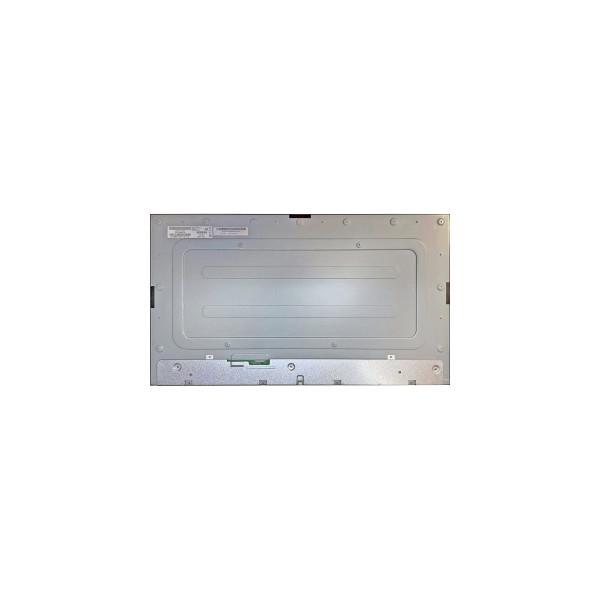

M270DAN09.1 27.0 inch 2560*1440 LCD Screen Display

Brand Name:	AUO
Model Number:	M270DAN09.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M270DAN09.1

Diagonal Size:

27.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 108PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

596.736(W)×335.664(H) Mm

Display Mode:

AHVA, Normally Black, Transmissive

Display Colors:

1.07B 93%DCI-P3

Signal Interface:

EDP (4 Lanes) , HBR1 (2.7G/lane) , 30 PinsConnector

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M270DAN09.1 27.0 inch 2560*1440 LCD Screen Display

M270DAN09.1 LCD Panel Product details :

Brand	AUO
Model P/N	M270DAN09.1
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 108PPI
Pixel Format	RGB Vertical Stripe
Active Area	596.736(W)×335.664(H) mm
Bezel Opening	-
Outline Size	608.6(W)×348.6(H)×15(D) mm
Brightness	350 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	1.07B 93%DCI-P3
Frequency	60Hz
Weight	2.98±0.15Kgs
Surface	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	AHVA, Normally Black, Transmissive
Response Time	14 (Typ.)(G to G)
Lamp Type	4 strings WLED , 30K hours , Without Driver
Touch Screen	Without
Application	Desktop Monitor
Signal Interface	eDP (4 Lanes) , HBR1 (2.7G/lane) , 30 pinsConnector
Input Voltage	10.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

M270DAN09.1 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

M270DAN09.1 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

M270DAN09.1 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

M270DAN09.1 LCD Panel Shipping and Package :

M270DAN09.1 LCD Panel FAQ :

Q: How to order lcd panel M270DAN09.1 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will my order 27.0 inch lcd panel M270DAN09.1 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 27.0 inch lcd panel M270DAN09.1 before shipping?

A: Don't Worry , Our AUO M270DAN09.1 was tested ok before shipping.

Q: What happen if AUO M270DAN09.1 I received can't work ?

A: Our AUO lcd M270DAN09.1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
