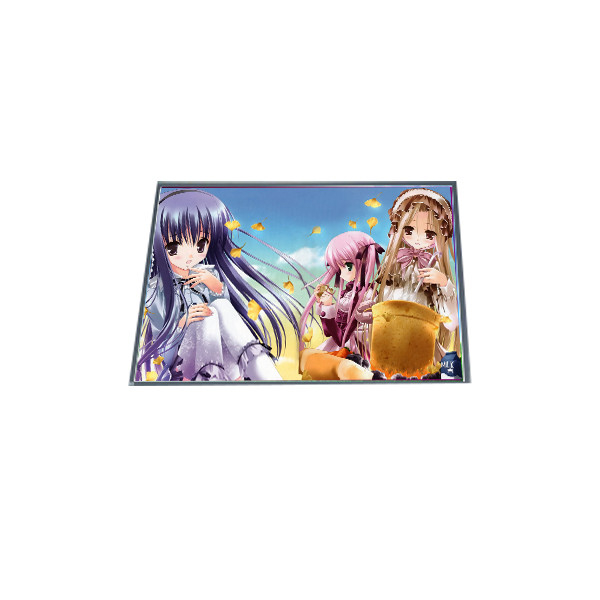

LC260EXJ-SDA1 26.0 inch 1366*768 LVDS 30pins LCD Screen Module

Brand Name:	LG
Model Number:	LC260EXJ-SDA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LC260EXJ-SDA1

Diagonal Size:

26.0"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1366(RGB)×768, WXGA 60PPI

Pixel Format:

RGB Vertical Stripe

Viewing Angle:

89/89/89/89 (Min.)(CR≥10)

Display Mode:

IPS, Normally Black, Transmissive

Display Colors:

16.7M 68%NTSC

Backlight:

No B/L

Used For:

Digital Signage、Transparent Display

Supply Ability:

100000 Unit/Units per Month

Product Description

LC260EXJ-SDA1 26.0 inch 1366*768 LVDS 30pins LCD Screen Module

LC260EXJ-SDA1 LCD Panel Product details :

Brand	LG Display
Model P/N	LC260EXJ-SDA1
Diagonal Size	26.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1366(RGB)×768, WXGA 60PPI
Pixel Format	RGB Vertical Stripe
Active Area	575.769(W)×323.712(H) mm
Bezel Opening	-
Outline Dim.	594.2(H)×341.5(V)×1.8(D) mm
Treatment	Antiglare (Haze 10%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	6/9 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Plate Thickness	-
Transmittance	4.84% (Typ.)(with Polarizer)
Support Color	16.7M 68%NTSC
Light Source	No B/L
Weight	820/900g (Typ./Max.)
Designed For	Digital Signage,Transparent Display
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COF Built-in 4 source chips
Interface Type	LVDS (1 ch, 8-bit), 30 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LC260EXJ-SDA1 26.0 inch 1366*768 LVDS 30pins LCD Screen Module

LC260EXJ-SDA1 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LC260EXJ-SDA1 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LC260EXJ-SDA1 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LC260EXJ-SDA1 LCD Panel Shipping and Package :

LC260EXJ-SDA1 LCD Panel FAQ :

Q: How do you ship my goods LC260EXJ-SDA1 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of LC260EXJ-SDA1 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel LG LC260EXJ-SDA1 at a very low value ?

A: Yes , we can . pls inform us before shipping .
