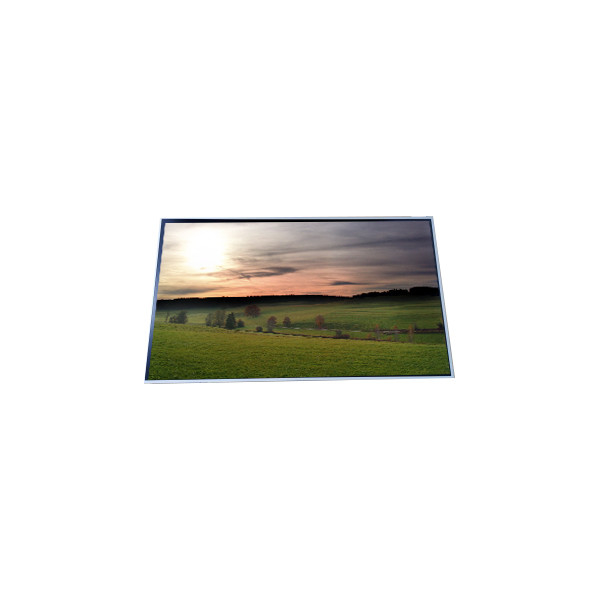

P520HW01 V0 52.0 Inch 1920*1080 LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P520HW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P520HW01 V0 | Diagonal Size: | 52" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 42PPI |
| Pixel Format: | RGB Vertical Stripe | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode: | AMVA3, Normally Black, Transmissive | Display Colors: | 1.07B 99%sRGB |
| Backlight: | CCFL, 60K Hours, With Inverter | Used For: | Digital Signage |
Product Description
P520HW01 V0 52.0 Inch 1920*1080 LCD Panel Display
P520HW01 V0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | P520HW01 V0 |
| Diagonal Size | 52" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 42PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1152(W)×648(H) mm |
| Bezel Opening | 1166.0(W)×662.0(H) mm |
| Outline(mm) | 1192 × 688 (H×V×D) |
| Treatment | Clear, Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 15/8 (Typ.)(Tr/Td), 5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AMVA3, Normally Black, Transmissive |
| Color Depth | 1.07B 99%sRGB |
| Backlight | CCFL, 60K hours, With Inverter |
| Mass | 20.0Kgs (Max.) |
| Used for | Digital Signage |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 10-bit), 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
P520HW01 V0 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
P520HW01 V0 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
P520HW01 V0 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
P520HW01 V0 LCD Panel Shipping and Package :
P520HW01 V0 LCD Panel FAQ :
Q: Can you test the lcd panel P520HW01 V0 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order P520HW01 V0 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order P520HW01 V0 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd P520HW01 V0 ?
A: 90 days .
Want to Know more details about this product
