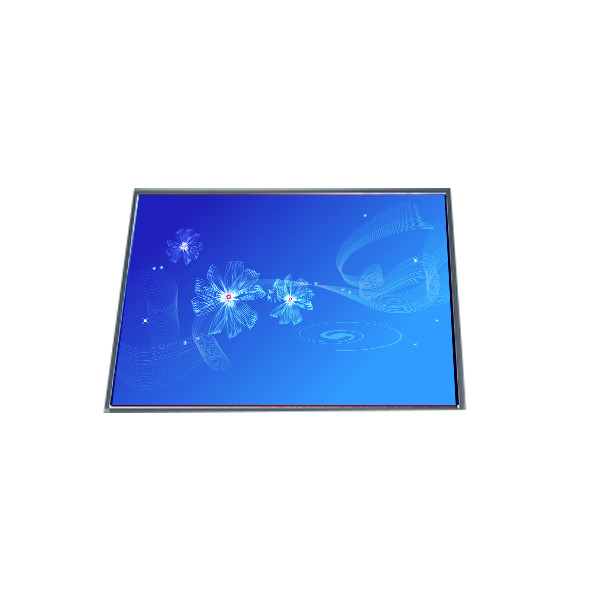

LB201U08-SLL1 LCD Display Panel 20.1 inch 1600*1200 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB201U08-SLL1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB201U08-SLL1 | Diagonal Size: | 20.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1600(RGB)×1200, UXGA 99PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 408(W)×306(H) Mm |
| Work Mode: | IPS, Normally Black, Transmissive | Color Depth: | 16.7M 72%NTSC |
| Backlight: | 6 Pcs CCFL , 45K Hours , Without Driver | Used For: | Desktop Monitor |
Product Description
LB201U08-SLL1 LCD Display Panel 20.1 inch 1600*1200 LCD Screen Module
LB201U08-SLL1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LB201U08-SLL1 |
| Diagonal Size | 20.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×1200, UXGA 99PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408(W)×306(H) mm |
| Bezel Opening | 413.0(W)×311.0(H) mm |
| Outline Size | 432(W)×331.5(H) mm |
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 3.20Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 6.5/7.5 (Typ.)(Tr/Td) |
| Lamp Type | 6 pcs CCFL , 45K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 18.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LB201U08-SLL1 LCD Display Panel 20.1 inch 1600*1200 LCD Screen Module | |
LB201U08-SLL1 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LB201U08-SLL1 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LB201U08-SLL1 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LB201U08-SLL1 LCD Panel Shipping and Package :
LB201U08-SLL1 LCD Panel FAQ :
Q: Can I pay my order of LB201U08-SLL1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LB201U08-SLL1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LB201U08-SLL1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LB201U08-SLL1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Want to Know more details about this product
