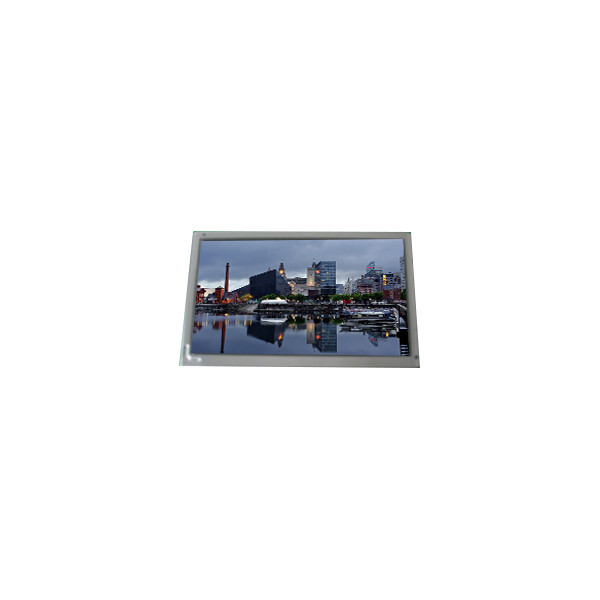

New LQ070T5CRQ2 500 cd/m2 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ070T5CRQ2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ070T5CRQ2 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×234 76PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 154.08(W)×87.05(H) Mm |
| Used For: | Automotive Display | Work Mode: | TN, Normally White, Transmissive |
Product Description
New LQ070T5CRQ2 500 cd/m2 LCD Screen Display Panel
LQ070T5CRQ2 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ070T5CRQ2 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×87.05(H) mm |
| Bezel Opening | 155.6(W)×88.1(H) mm |
| Outline Size | 192.4(W)×109.5(H) mm |
| Surface | Antiglare, Antireflection |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 11/22 (Typ.)(Tr/Td) |
| Display Colors | Full color |
| Lamp Type | 2 pcsCCFL, 10K hours, With Inverter |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 370g (Max.) |
| Application | Automotive Display |
| Signal Interface | Composite Video (NTSC/PAL), 29 pinsConnector |
| Input Voltage | 8.0/13.8/18.0V (Min./Typ./Max.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| New LQ070T5CRQ2 500 cd/m2 LCD Screen Display Panel | |
LQ070T5CRQ2 LCD Panel Shipping and Package :
LQ070T5CRQ2 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ070T5CRQ2 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ070T5CRQ2 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
