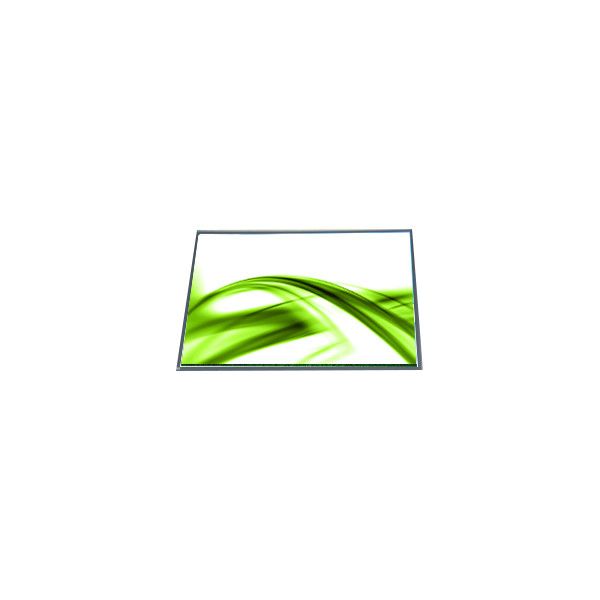

LB104S04-TL03 10.4 inch LCD display panel 800*600 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB104S04-TL03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB104S04-TL03 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 96PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 211.2(W)×158.4(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Color Depth: | 262K 50%NTSC |
| Backlight: | 6S6PWLED, 50K Hours, Without Driver | Used For: | Industrial |
Product Description
LB104S04-TL03 10.4 inch LCD display panel 800*600 LCD Screen Module
LB104S04-TL03 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LB104S04-TL03 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 214.2(W)×161.8(H) mm |
| Outline Size | 224.6(W)×172(H)×7.1(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K 50%NTSC |
| Lamp Type | 6S6PWLED, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LB104S04-TL03 10.4 inch LCD display panel 800*600 LCD Screen Module | |
LB104S04-TL03 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LB104S04-TL03 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LB104S04-TL03 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LB104S04-TL03 LCD Panel Shipping and Package :
LB104S04-TL03 LCD Panel FAQ :
Q: If I order LB104S04-TL03 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of LB104S04-TL03 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LB104S04-TL03 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of LB104S04-TL03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
