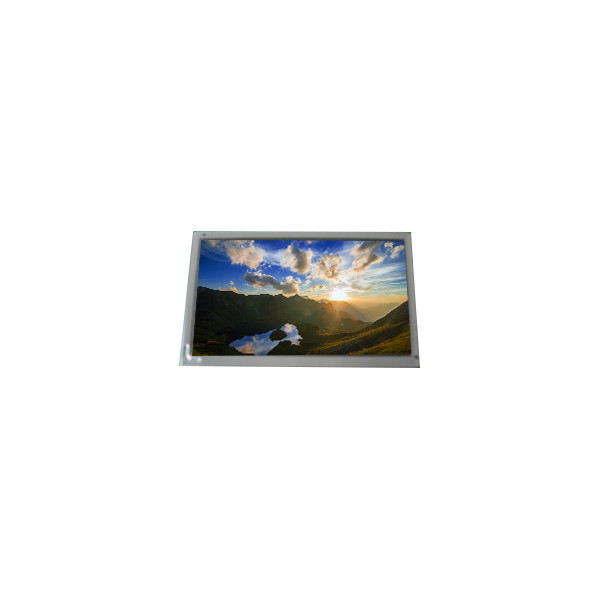

Original LQ070T5CR01 480*234 350cd/m2 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ070T5CR01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ070T5CR01 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×234 76PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 154.08(W)×87.05(H) Mm |
| Used For: | Automotive Display | Work Mode: | TN, Normally White, Transmissive |
Product Description
Original LQ070T5CR01 480*234 350cd/m2 LCD Display Screen
LQ070T5CR01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ070T5CR01 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×87.05(H) mm |
| Bezel Opening | - |
| Outline(mm) | 170(W)×104(H)×18(D) |
| Luminance | 350 (Typ.)(cd/m²) |
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥5) |
| Good View at | 6 o'clock |
| Color Depth | Full color |
| Mass | 320g (Max.) |
| Refresh Rate | - |
| Treatment | Antiglare, Antireflection |
| Contrast Ratio | 60 : 1 (Min.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 30/50 (Typ.)(Tr/Td) ms |
| Backlight | 1 pcs CCFL , 10K hours , With Inverter |
| Used for | Automotive Display |
| Touchscreen | Without |
| Signal Type | Analog RGB + Composite Video (NTSC/PAL), 28 pins Connector |
| Voltage Supply | 8.0±1.0V |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Original LQ070T5CR01 480*234 350cd/m2 LCD Display Screen | |
LQ070T5CR01 LCD Panel Shipping and Package :
LQ070T5CR01 LCD Panel FAQ :
Q: How to order lcd panel LQ070T5CR01 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ070T5CR01 ?
A: NEW Product warranty is 90 days.
