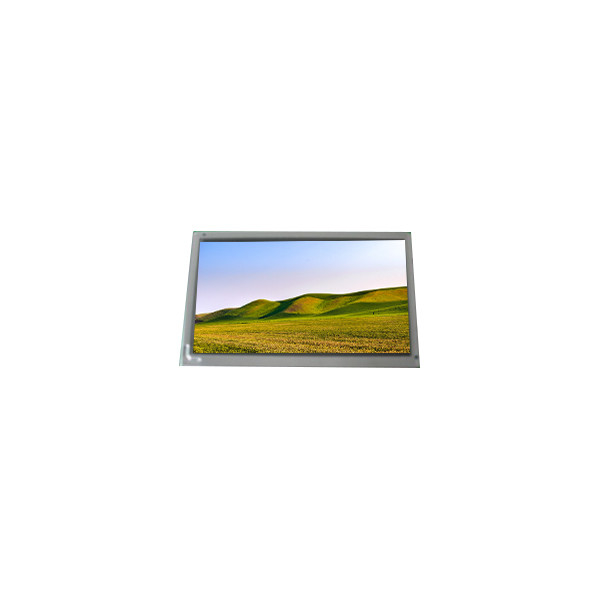

LQ070T3GR01 7.0 inch LCD Display Panel TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ070T3GR01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ070T3GR01 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×234 76PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 154.08(W)×87.05(H) Mm |
| Used For: | Digital Photo Frame、Portable DVD Player | Touch Screen: | Without |
Product Description
LQ070T3GR01 7.0 inch LCD Display Panel TFT LCD Module
LQ070T3GR01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ070T3GR01 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×87.05(H) mm |
| Bezel Opening | - |
| Outline Dim. | 166(H)×102(V)×8.1(D) mm |
| Treatment | Antiglare, Antireflection |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 60:1 (Min.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | Full color |
| Light Source | CCFL [1 pcs], 10K hours, W/O Driver |
| Weight | 205g (Max.) |
| Designed For | Digital Photo Frame,Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TFT Specific Analog RGB, 32 pinsFPC |
| Power Supply | 5/13/-10/-12/-17V (VSH/VGH/VGL/VCC/VSS) |
| Environment | Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C |
| LQ070T3GR01 7.0 inch LCD Display Panel TFT LCD Module | |
LQ070T3GR01 LCD Panel Shipping and Package :
LQ070T3GR01 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ070T3GR01 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ070T3GR01 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
