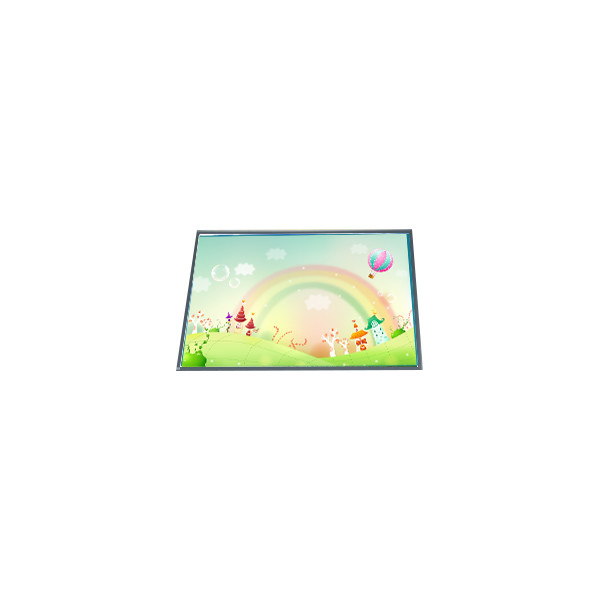

LB084S02-TD02 Original in stock 8.4 inch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB084S02-TD02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB084S02-TD02 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 119PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 170.4(W)×127.8(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Color Depth: | 262K 60%NTSC |
| Backlight: | WLED [3S9P], W/O Driver | Used For: | Digital Photo Frame |
Product Description
LB084S02-TD02 Original in stock 8.4 inch LCD Display Screen
LB084S02-TD02 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LB084S02-TD02 |
| Diagonal Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 174.7(W)×135.15(H) mm |
| Outline Dim. | 189.75(W)×149.4(H)×6.6(D) mm |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 60%NTSC |
| Light Source | WLED [3S9P], W/O Driver |
| Weight | 300/310g (Typ./Max.) |
| Designed For | Digital Photo Frame |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit), 60 pinsFPC |
| Power Supply | 3.3/8.0/15.5/-4.5V (Typ.)(VCC/VDD/VGH/VGL) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| LB084S02-TD02 Original in stock 8.4 inch LCD Display Screen | |
LB084S02-TD02 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LB084S02-TD02 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LB084S02-TD02 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LB084S02-TD02 LCD Panel Shipping and Package :
LB084S02-TD02 LCD Panel FAQ :
Q: When will my order 8.4 inch lcd panel LB084S02-TD02 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 8.4 inch lcd panel LB084S02-TD02 before shipping?
A: Don't Worry , The LB084S02-TD02 was tested ok before shipping.
Q: What happen if LB084S02-TD02 I received can't work ?
A: The LB084S02-TD02 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
