LCD Screen Display Panel

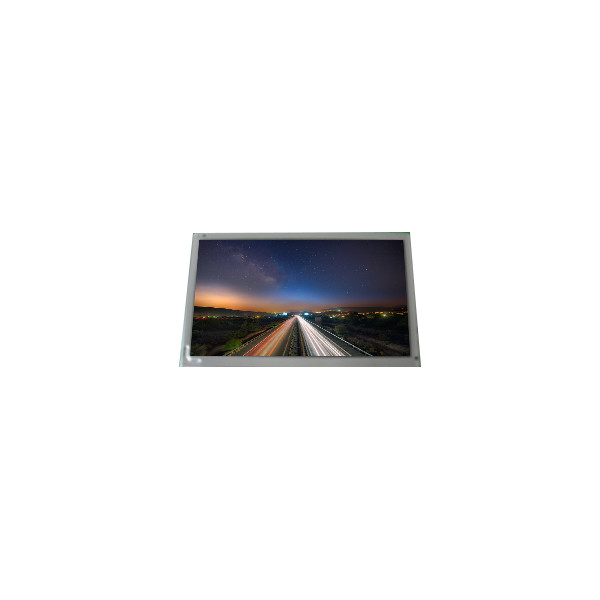

800*480 New LQ065Y9RA01 6.5 inch 60Hz 300 cd/m2 LCD Screen

All Category

Floor Standing Digital Signage

800*480 New LQ065Y9RA01 6.5 inch 60Hz 300 cd/m2 LCD Screen

Brand Name:	Sharp
Model Number:	LQ065Y9RA01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ065Y9RA01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 144PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

143.4(W)×79.32(H) Mm

Color Depth:

262K 60%NTSC

Designed For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

800*480 New LQ065Y9RA01 6.5 inch 60Hz 300 cd/m2 LCD Screen

LQ065Y9RA01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ065Y9RA01
Diagonal Size	6.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 144PPI
Pixel Format	RGB Vertical Stripe
Active Area	143.4(W)×79.32(H) mm
Bezel Opening	-
Outline Dim.	161.8(H)×94.7(V)×11.8(D)mm
Treatment	-
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM) 4.5:1 (Typ.) (RF)
View Direction	-
Response Time	12/4 (Typ.)(Tr/Td)
Viewing Angle	-
Operating Mode	TN, Normally White, Transflective
Support Color	262K 60%NTSC
Light Source	WLED [7S3P], W/O Driver
Weight	215g (Max.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	RSDS (2 Channel), 60 pinsConnector
Power Supply	3.3/5.7V (Typ.)(VCCS/VSHA)
Environment	Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²)
800*480 New LQ065Y9RA01 6.5 inch 60Hz 300 cd/m2 LCD Screen

LQ065Y9RA01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ065Y9RA01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ065Y9RA01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ065Y9RA01 LCD Panel Shipping and Package :

800*480 New LQ065Y9RA01 6.5 inch 60Hz 300 cd/m2 LCD Screen 0

LQ065Y9RA01 LCD Panel FAQ :

Q: When would you ship,IF I order LQ065Y9RA01 now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
