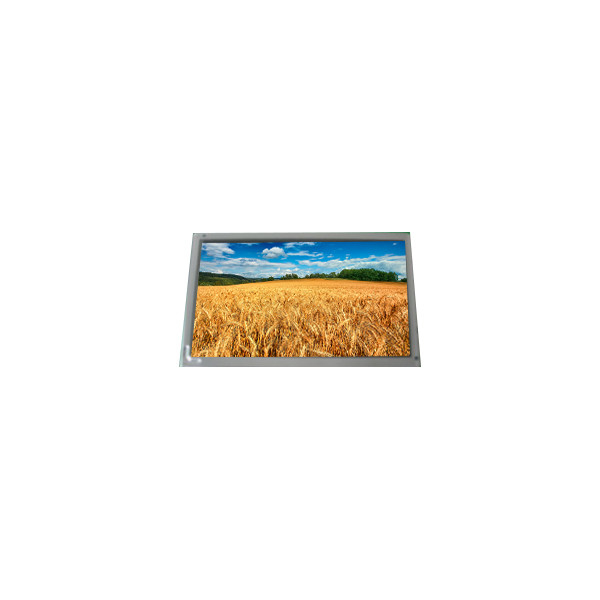

LQ065Y5DG03 500 cd/m2 TFT LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ065Y5DG03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ065Y5DG03 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 144PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 144(W)×79.24(H) Mm |
| Lamp Type: | 1 PcsCCFL, 10K Hours, Without Driver | Designed For: | Automotive Display |
Product Description
LQ065Y5DG03 500 cd/m2 TFT LCD Screen Display Panel
LQ065Y5DG03 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ065Y5DG03 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 144PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 144(W)×79.24(H) mm |
| Bezel Opening | - |
| Outline Size | 157.4(W)×89.7(H)×12.6(D) mm |
| Surface | Antiglare, Antireflection |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/55 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 10/16 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 1 pcsCCFL, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 180g (Max.) |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 50 pins FPC |
| Input Voltage | 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEEDC) |
| Environment | Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 85 °C; Vibration Level: 3.0G (29.4 m/s²) |
| LQ065Y5DG03 500 cd/m2 TFT LCD Screen Display Panel | |
