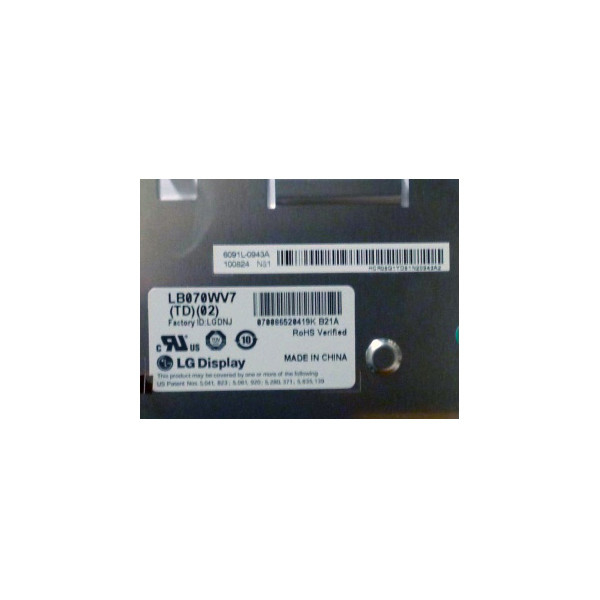

LB070WV7-TD02 7.0 inch LCD Display WVGA 800*480 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB070WV7-TD02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB070WV7-TD02 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Color Depth: | 262K 64%NTSC |
| Backlight: | 7S2PWLED, 10K Hours, No Driver | Used For: | Automotive Display |
Product Description
LB070WV7-TD02 7.0 inch LCD Display WVGA 800*480 LCD Screen
LB070WV7-TD02 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LB070WV7-TD02 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.8(W)×93.8(H) mm |
| Outline (mm) | 164.4×102.2×11.6 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/50 (Typ.)(CR≥10) |
| Response | 7/18 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 64%NTSC |
| Backlight | 7S2PWLED, 10K hours, No Driver |
| Mass | 180g (Max.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit), FPC60 pins |
| Voltage Supply | 3.3/9.5/18.5/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| LB070WV7-TD02 7.0 inch LCD Display WVGA 800*480 LCD Screen | |
