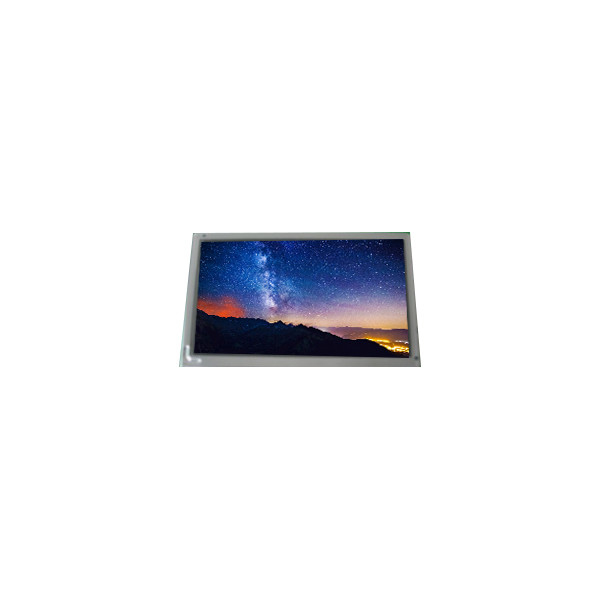

LQ065T9DZ01 6.5 inch 400*240 250 cd/m2 LCD Screen Module

Brand Name:	Sharp
Model Number:	LQ065T9DZ01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ065T9DZ01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

400(RGB)×240, WQVGA 72PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

143.4(W)×79.326(H) Mm

Lamp Type:

CCFL [1 Pcs], 10K Hours, W/O Driver

Designed For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ065T9DZ01 6.5 inch 400*240 250 cd/m2 LCD Screen Module

LQ065T9DZ01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ065T9DZ01
Diagonal Size	6.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	400(RGB)×240, WQVGA 72PPI
Pixel Format	RGB Vertical Stripe
Active Area	143.4(W)×79.326(H) mm
Bezel Opening	148.2(W)×83.3(H) mm
Outline Dim.	155(H)×89.2(V)×12.8(D) mm
Treatment	Antiglare, Antireflection
Luminance	250 cd/m² (Typ.)
Contrast Ratio	150:1 (Min.) (TM) 8:1 (Typ.) (RF)
View Direction	12 o'clock
Response Time	10/25 (Typ.)(Tr/Td)
Viewing Angle	50/50/45/45 (Typ.)(CR≥15)
Operating Mode	TN, Normally White, Transflective
Support Color	262K 47%NTSC
Light Source	CCFL [1 pcs], 10K hours, W/O Driver
Weight	205g (Max.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit), 31 pinsConnector
Power Supply	5/10/-10V (Typ.)(VSH/VGH/VGL)
Environment	Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²)
