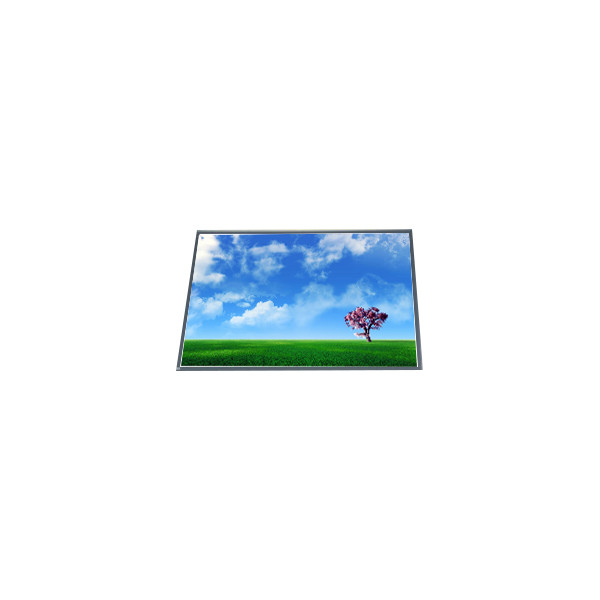

LB070WQ4-TM03 7.0 inch 480*234 LCD Screen with Automotive Display

Brand Name:	LG
Model Number:	LB070WQ4-TM03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LB070WQ4-TM03

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×234 76PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

156.24(W)×82.368(H) Mm

Operating Mode:

TN, Normally White, Transmissive

Light Source:

1 PcsCCFL, 15K Hours, No Driver

Used For:

Automotive Display

Weight:

150/160g (Typ./Max.)

Supply Ability:

100000 Unit/Units per Month

Product Description

LB070WQ4-TM03 7.0 inch 480*234 LCD Screen with Automotive Display

LB070WQ4-TM03 LCD Panel Product details :

Brand	LG Display
Model P/N	LB070WQ4-TM03
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×234 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	156.24(W)×82.368(H) mm
Bezel Opening	158.3(W)×84.5(H) mm
Outline(mm)	167 × 93× 8.1 (H×V×D)
Treatment	Antiglare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	65/65/50/60 (Typ.)(CR≥10)
Response	10/20 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	Full color 45%NTSC
Backlight	1 pcsCCFL, 15K hours, No Driver
Mass	150/160g (Typ./Max.)
Used for	Automotive Display
Refresh Rate	-
Touchscreen	Without
Signal Type	Analog RGB, 30 pins FPC
Voltage Supply	3.3/5.0/18.5/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL)
Max. Ratings	Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C
LB070WQ4-TM03 7.0 inch 480*234 LCD Screen with Automotive Display

LB070WQ4-TM03 LCD Screen About Products

Product Information: Before making a purchase, we urge you to carefully read the information provided in the article to ensure that you are selecting the correct product for your needs. If you are uncertain about whether this product is suitable for you, please do not hesitate to contact us at any time. Our team of professional engineers is available to assist you. In order to provide you with the best assistance, we may request photos and additional product information from you. Your timely response is greatly appreciated as it enables us to serve you better.

Production Variations: Please be aware that some products may have different production times, originate from various factories, and may be intended for different sales regions. As a result, there may be slight variations in product codes and details. However, we assure you that this is a normal occurrence and does not affect the functionality or quality of the product. Regardless of any minor differences, we guarantee that the product you receive will meet the required specifications and standards.

LB070WQ4-TM03 LCD Screen NOTICE:

Import Duties and Taxes: Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

Customs Declaration: In order to facilitate the customs process, we will mark the item as a "gift" on the custom sticker.

Shipping Service: We strive to provide you with the most reliable and affordable shipping service available. However, please be aware that international delivery times may vary depending on the courier company and local customs and duties regulations. As a result, shipping times may be longer than usual. We appreciate your patience and understanding during this time.

LB070WQ4-TM03 LCD Panel Shipping and Package :

LB070WQ4-TM03 LCD Screen After Sales:

Installation Caution: Prior to confirming that the screen is not functioning properly, we strongly advise against using adhesive to install our screen onto your equipment. If the screen becomes affixed with adhesive, we regret to inform you that we cannot accept returns or process refunds.

Troubleshooting Procedures:
a. Broken Screen: If you encounter a broken screen upon receipt, please document the unpacking process by making an unpacking video. Following this, kindly contact us and forward the video for our review.

b. Non-Functioning Screen: In the event of a screen that fails to operate as expected, we request that you create a testing video demonstrating the issue. Subsequently, please reach out to us and provide the video for further assistance.

Customer Support: Should you encounter any problems with the screen, we encourage you to contact us immediately. Our dedicated support team is committed to addressing your concerns promptly and resolving any issues you may encounter.

LB070WQ4-TM03 LCD Panel FAQ :

Q: How can I trace my order of LB070WQ4-TM03 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of LB070WQ4-TM03 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of LB070WQ4-TM03 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LB070WQ4-TM03 ?

A: Of course!If you make a large order, we will give you a discount.
