LCD Screen Display Panel

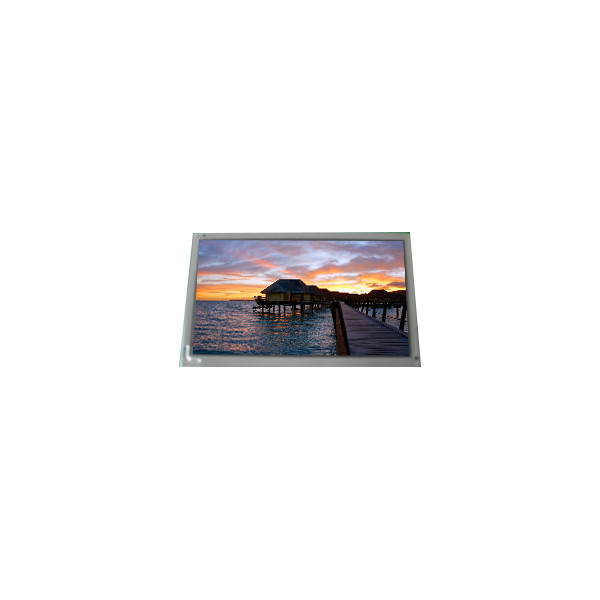

New LQ065T9DR52 6.5 inch 400*240 262K LCD Screen Panel

All Category

Floor Standing Digital Signage

New LQ065T9DR52 6.5 inch 400*240 262K LCD Screen Panel

Brand Name:	Sharp
Model Number:	LQ065T9DR52
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ065T9DR52

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

400(RGB)×240, WQVGA 72PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

143.4(W)×79.326(H) Mm

Lamp Type:

1 PcsCCFL, 10K Hours, Without Driver

Designed For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

New LQ065T9DR52 6.5 inch 400*240 262K LCD Screen Panel

LQ065T9DR52 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ065T9DR52
Diagonal Size	6.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	400(RGB)×240, WQVGA 72PPI
Pixel Format	RGB Vertical Stripe
Active Area	143.4(W)×79.326(H) mm
Bezel Opening	-
Outline Size	155(W)×89.2(H)×12.8(D) mm
Surface	Antiglare, Antireflection
Brightness	220 cd/m² (Typ.)
Contrast Ratio	60:1 (Min.) (TM) 5:1 (Typ.) (RF)
Viewing Angle	50/50/40/45 (Typ.)(CR≥5)
Display Mode	TN, Normally White, Transflective
Best View on	12 o'clock
Response Time	10/25 (Typ.)(Tr/Td)
Display Colors	262K
Lamp Type	1 pcsCCFL, 10K hours, Without Driver
Frequency	-
Touch Screen	Without
Panel Weight	205g (Max.)
Application	Automotive Display
Signal Interface	Parallel RGB (1 ch, 6-bit), 31 pinsConnector
Input Voltage	5/10/-10V (Typ.)(VSH/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
New LQ065T9DR52 6.5 inch 400*240 262K LCD Screen Panel

LQ065T9DR52 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ065T9DR52 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ065T9DR52 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ065T9DR52 LCD Panel Shipping and Package :

New LQ065T9DR52 6.5 inch 400*240 262K LCD Screen Panel 0

LQ065T9DR52 LCD Panel FAQ :

Q: How to make payment of LQ065T9DR52 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of LQ065T9DR52 ?

A: Of course!sample order is welcome !

Q: Can You declare my order LQ065T9DR52 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How can I trace my order of LQ065T9DR52 ?

A: we will give you tracking number then you can trace your order from website.
