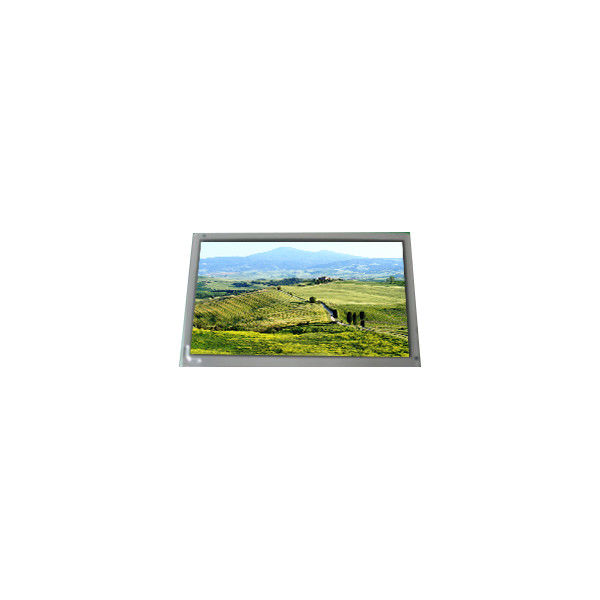

LQ065T9BR53 6.5 inch 60Hz LCD Screen TFT-LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ065T9BR53 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ065T9BR53 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 400(RGB)×240, WQVGA 72PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 143.4(W)×79.326(H) Mm |
| Lamp Type: | 1 Pcs CCFL , 10K Hours , No Driver | Designed For: | Automotive Display |
Product Description
LQ065T9BR53 6.5 inch 60Hz LCD Screen TFT-LCD Panel
LQ065T9BR53 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ065T9BR53 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 400(RGB)×240, WQVGA 72PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 143.4(W)×79.326(H) mm |
| Bezel Opening | - |
| Outline(mm) | 155(W)×89.2(H)×12.8(D) |
| Luminance | 220 (Typ.)(cd/m²) |
| Viewing Angle | 50/50/40/50 (Typ.)(CR≥5) |
| Good View at | 6 o'clock |
| Color Depth | Full color |
| Mass | 205g (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 60 : 1 (Typ.) (TM) 7:1 (Typ.) (RF) |
| Work Mode | TN, Normally White, Transflective |
| Response | 15/35 (Typ.)(Tr/Td) ms |
| Backlight | 1 pcs CCFL , 10K hours , No Driver |
| Used for | Automotive Display |
| Touchscreen | Without |
| Signal Type | Analog RGB + Composite Video (NTSC/PAL), 24 pins Connector |
| Voltage Supply | 5/13/-16V (Typ.)(VSH/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| LQ065T9BR53 6.5 inch 60Hz LCD Screen TFT-LCD Panel | |
LQ065T9BR53 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LQ065T9BR53 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LQ065T9BR53 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LQ065T9BR53 LCD Panel Shipping and Package :
LQ065T9BR53 LCD Panel FAQ :
Q: Do you accept sample orders of LQ065T9BR53 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LQ065T9BR53 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LQ065T9BR53 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LQ065T9BR53 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Want to Know more details about this product
