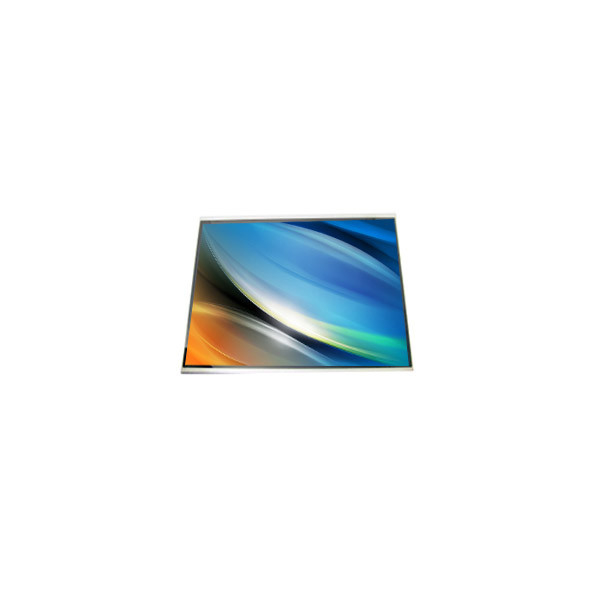

HSD053B8W1-C00 5.3 inch 480*854 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD053B8W1-C00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD053B8W1-C00 | Diagonal Size: | 5.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 480(RGB)×854, FWVGA 186PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 65.52(W)×116.571(H) Mm |
| Operating Mode: | TN, Normally White, Transmissive | Lamp Type: | No B/L |
| Used For: | Mobile Phone | Color Depth: | 16.7M 60% NTSC |
Product Description
HSD053B8W1-C00 5.3 inch 480*854 LCD Screen Panel
HSD053B8W1-C00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD053B8W1-C00 |
| Diagonal Size | 5.3" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 480(RGB)×854, FWVGA 186PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 65.52(W)×116.571(H) mm |
| Bezel Opening | - |
| Outline Dim. | 68.61(W)×124.68(H)×0.5(D) mm |
| Luminance | 0 cd/m² |
| View Direction | 12 o'clock |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Plate Thickness | 0.25+0.25 mm |
| Support Color | 16.7M 60% NTSC |
| Weight | - |
| Frame Rate | - |
| Treatment | Without Polarizer |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Transmittance | 4.74% (Typ.)(with Polarizer) |
| Light Source | No B/L |
| Designed For | Mobile Phone |
| Touch Panel | Without |
| D-IC Detail | COG Suggest HX8379-A, NT35510, NT35510S, NT35512, OTM8009A, OTM8018B, RM68171, RM68180 |
| Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
HSD053B8W1-C00 LCD Screen About Products
Product Information: Before making a purchase, we urge you to carefully read the information provided in the article to ensure that you are selecting the correct product for your needs. If you are uncertain about whether this product is suitable for you, please do not hesitate to contact us at any time. Our team of professional engineers is available to assist you. In order to provide you with the best assistance, we may request photos and additional product information from you. Your timely response is greatly appreciated as it enables us to serve you better.
Production Variations: Please be aware that some products may have different production times, originate from various factories, and may be intended for different sales regions. As a result, there may be slight variations in product codes and details. However, we assure you that this is a normal occurrence and does not affect the functionality or quality of the product. Regardless of any minor differences, we guarantee that the product you receive will meet the required specifications and standards.
HSD053B8W1-C00 LCD Screen NOTICE:
Import Duties and Taxes: Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs Declaration: In order to facilitate the customs process, we will mark the item as a "gift" on the custom sticker.
Shipping Service: We strive to provide you with the most reliable and affordable shipping service available. However, please be aware that international delivery times may vary depending on the courier company and local customs and duties regulations. As a result, shipping times may be longer than usual. We appreciate your patience and understanding during this time.
HSD053B8W1-C00 LCD Panel Shipping and Package :
HSD053B8W1-C00 LCD Screen After Sales:
Installation Caution: Prior to confirming that the screen is not functioning properly, we strongly advise against using adhesive to install our screen onto your equipment. If the screen becomes affixed with adhesive, we regret to inform you that we cannot accept returns or process refunds.
Troubleshooting Procedures:
a. Broken Screen: If you encounter a broken screen upon receipt, please document the unpacking process by making an unpacking video. Following this, kindly contact us and forward the video for our review.
b. Non-Functioning Screen: In the event of a screen that fails to operate as expected, we request that you create a testing video demonstrating the issue. Subsequently, please reach out to us and provide the video for further assistance.
Customer Support: Should you encounter any problems with the screen, we encourage you to contact us immediately. Our dedicated support team is committed to addressing your concerns promptly and resolving any issues you may encounter.
HSD053B8W1-C00 LCD Panel FAQ :
Q: Can You declare my order of HSD053B8W1-C00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HSD053B8W1-C00 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods HSD053B8W1-C00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of HSD053B8W1-C00 ?
A: We accept T/T , Paypal , western union .
