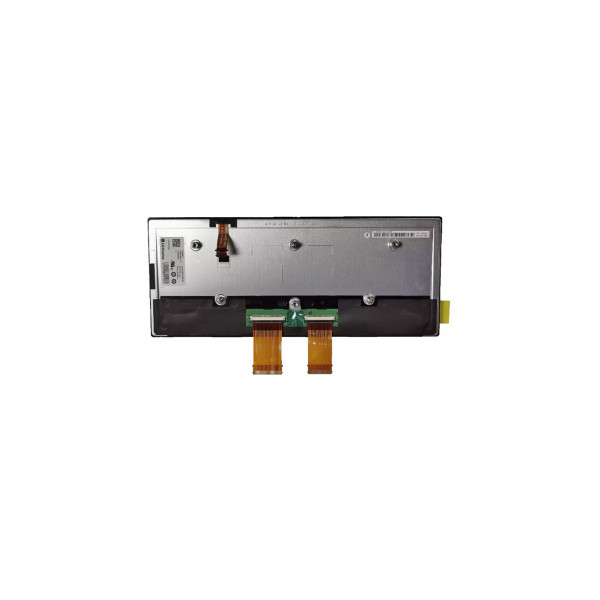

LA123WF4-SR02 12.3 inch 1920*720 IPS LCD Display Module

Brand Name:	LG
Model Number:	LA123WF4-SR02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LA123WF4-SR02

Diagonal Size:

12.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×720 167PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

292.032(W)×109.512(H) Mm

Operating Mode:

IPS, Normally Black, Transmissive

Lamp Type:

WLED [11S4P], 10K Hours, W/O Driver

Used For:

Automotive Display

Frame Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

LA123WF4-SR02 12.3 inch 1920*720 IPS LCD Display Module

LA123WF4-SR02 LCD Panel Product details :

Brand	LG Display
Model P/N	LA123WF4-SR02
Diagonal Size	12.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720 167PPI
Pixel Format	RGB Vertical Stripe
Active Area	292.032(W)×109.512(H) mm
Bezel Opening	296.03(W)×113.5(H) mm
Outline Dim.	310(H)×128(V)×10.75(D) mm
Treatment	Hard coating
Luminance	-
Contrast Ratio	800:1 (Min.) (TM)
View Direction	Symmetry
Response Time	30 (Max.)(G to G), 25 (Typ.)(MPRT)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M
Light Source	WLED [11S4P], 10K hours, W/O Driver
Weight	385/400g (Typ./Max.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	RSDS (2 Channel), 110 pinsFPC
Power Supply	3.3/13.0V (Typ.)(VCC/VDD)
Environment	Operating Temperature: -40 ~ 85 °C; Storage Temperature: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 m/s²)
LA123WF4-SR02 12.3 inch 1920*720 IPS LCD Display Module

LA123WF4-SR02 LCD Screen About Products

Product Information: Before making a purchase, we urge you to carefully read the information provided in the article to ensure that you are selecting the correct product for your needs. If you are uncertain about whether this product is suitable for you, please do not hesitate to contact us at any time. Our team of professional engineers is available to assist you. In order to provide you with the best assistance, we may request photos and additional product information from you. Your timely response is greatly appreciated as it enables us to serve you better.

Production Variations: Please be aware that some products may have different production times, originate from various factories, and may be intended for different sales regions. As a result, there may be slight variations in product codes and details. However, we assure you that this is a normal occurrence and does not affect the functionality or quality of the product. Regardless of any minor differences, we guarantee that the product you receive will meet the required specifications and standards.

LA123WF4-SR02 LCD Screen NOTICE:

Import Duties and Taxes: Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

Customs Declaration: In order to facilitate the customs process, we will mark the item as a "gift" on the custom sticker.

Shipping Service: We strive to provide you with the most reliable and affordable shipping service available. However, please be aware that international delivery times may vary depending on the courier company and local customs and duties regulations. As a result, shipping times may be longer than usual. We appreciate your patience and understanding during this time.

LA123WF4-SR02 LCD Panel Shipping and Package :

LA123WF4-SR02 LCD Screen After Sales:

Installation Caution: Prior to confirming that the screen is not functioning properly, we strongly advise against using adhesive to install our screen onto your equipment. If the screen becomes affixed with adhesive, we regret to inform you that we cannot accept returns or process refunds.

Troubleshooting Procedures:
a. Broken Screen: If you encounter a broken screen upon receipt, please document the unpacking process by making an unpacking video. Following this, kindly contact us and forward the video for our review.

b. Non-Functioning Screen: In the event of a screen that fails to operate as expected, we request that you create a testing video demonstrating the issue. Subsequently, please reach out to us and provide the video for further assistance.

Customer Support: Should you encounter any problems with the screen, we encourage you to contact us immediately. Our dedicated support team is committed to addressing your concerns promptly and resolving any issues you may encounter.

LA123WF4-SR02 LCD Panel FAQ :

Q: How long is the warranty of LA123WF4-SR02 ?

A: 90 days warranty .

Q: How can I trace my order of LA123WF4-SR02 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LA123WF4-SR02 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods LA123WF4-SR02 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
