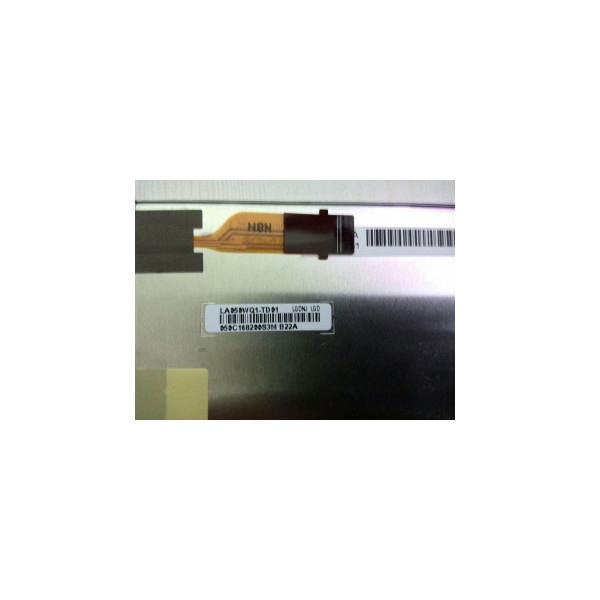

LA050WQ1-TD01 Original in stock 5.0 inch LCD Display Screen

Brand Name:	LG
Model Number:	LA050WQ1-TD01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LA050WQ1-TD01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×234 106PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

110.88(W)×62.478(H) Mm

Work Mode:

TN, Normally White, Transmissive

Color Depth:

262K 75%NTSC

Frequency:

Used For:

Outdoor High Brightness、Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

LA050WQ1-TD01 Original in stock 5.0 inch LCD Display Screen

LA050WQ1-TD01 LCD Panel Product details :

Brand	LG Display
Model P/N	LA050WQ1-TD01
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×234 106PPI
Pixel Format	RGB Vertical Stripe
Active Area	110.88(W)×62.478(H) mm
Bezel Opening	112.6(W)×64.2(H) mm
Outline(mm)	124 × 75.2× 8.3 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	1100 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	55/55/55/25 (Typ.)(CR≥10)
Response	6/9 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 75%NTSC
Backlight	5S2PWLED, 10K hours, No Driver
Mass	99.0/104g (Typ./Max.)
Used for	Outdoor High Brightness,Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), 60 pins FPC
Voltage Supply	3.3/10.0V (Typ.)(DVDD/AVDD)
Max. Ratings	Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C
LA050WQ1-TD01 Original in stock 5.0 inch LCD Display Screen

LA050WQ1-TD01 LCD Screen About Products

Product Information: Before making a purchase, we urge you to carefully read the information provided in the article to ensure that you are selecting the correct product for your needs. If you are uncertain about whether this product is suitable for you, please do not hesitate to contact us at any time. Our team of professional engineers is available to assist you. In order to provide you with the best assistance, we may request photos and additional product information from you. Your timely response is greatly appreciated as it enables us to serve you better.

Production Variations: Please be aware that some products may have different production times, originate from various factories, and may be intended for different sales regions. As a result, there may be slight variations in product codes and details. However, we assure you that this is a normal occurrence and does not affect the functionality or quality of the product. Regardless of any minor differences, we guarantee that the product you receive will meet the required specifications and standards.
LA050WQ1-TD01 LCD Screen NOTICE:

Import Duties and Taxes: Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.

Customs Declaration: In order to facilitate the customs process, we will mark the item as a "gift" on the custom sticker.

Shipping Service: We strive to provide you with the most reliable and affordable shipping service available. However, please be aware that international delivery times may vary depending on the courier company and local customs and duties regulations. As a result, shipping times may be longer than usual. We appreciate your patience and understanding during this time.

LA050WQ1-TD01 LCD Panel Shipping and Package :

LA050WQ1-TD01 LCD Screen After Sales:

Installation Caution: Prior to confirming that the screen is not functioning properly, we strongly advise against using adhesive to install our screen onto your equipment. If the screen becomes affixed with adhesive, we regret to inform you that we cannot accept returns or process refunds.

Troubleshooting Procedures:
a. Broken Screen: If you encounter a broken screen upon receipt, please document the unpacking process by making an unpacking video. Following this, kindly contact us and forward the video for our review.
b. Non-Functioning Screen: In the event of a screen that fails to operate as expected, we request that you create a testing video demonstrating the issue. Subsequently, please reach out to us and provide the video for further assistance.
Customer Support: Should you encounter any problems with the screen, we encourage you to contact us immediately. Our dedicated support team is committed to addressing your concerns promptly and resolving any issues you may encounter.

LA050WQ1-TD01 LCD Panel FAQ :

Q: How long will I receive my goods LA050WQ1-TD01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of LA050WQ1-TD01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LA050WQ1-TD01 ?

A: Of course!sample order is welcome !
