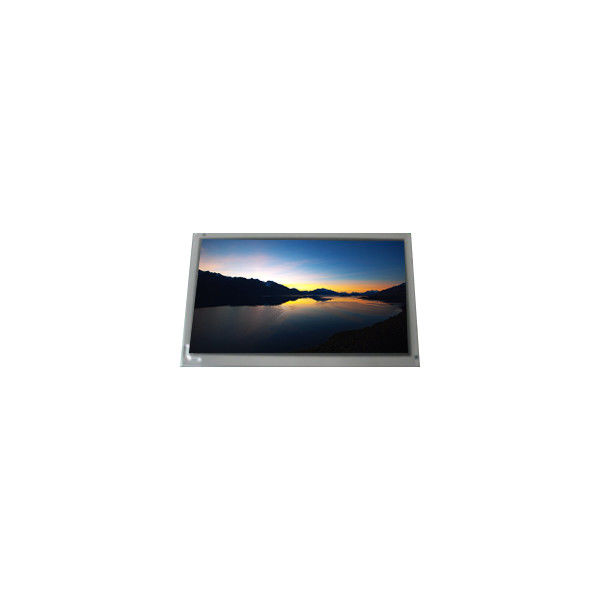

LQ64D343G 6.4 inch 300 cd/m2 LCD Screen LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ64D343G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ64D343G | Diagonal Size: | 6.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA 124PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 130.56(W)×96.96(H) Mm |
| Used For: | Industrial | Touch Screen: | Without |
Product Description
LQ64D343G 6.4 inch 300 cd/m2 LCD Screen LCD Module
LQ64D343G LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ64D343G |
| Diagonal Size | 6.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 130.56(W)×96.96(H) mm |
| Bezel Opening | 136.2(W)×100.0(H) mm |
| Outline Size | 175(W)×126.5(H)×12.5(D) mm |
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥5) |
| Best View on | 6 o'clock |
| Display Colors | 262K |
| Frequency | - |
| Weight | 280g (Max.) |
| Surface | Antiglare (Haze 28%), Hard coating (3H) |
| Contrast Ratio | 150:1 (Min.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20/40 (Typ.)(Tr/Td) |
| Lamp Type | 2 pcs CCFL , 50K hours , Without Driver |
| Touch Screen | Without |
| Application | Industrial |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 31 pinsConnector |
| Input Voltage | 5.0V (Typ.)(VCC) |
| Environment | Operating Temp.: 0 ~ 55 °C ;Storage Temp.: -25 ~ 70 °C |
| LQ64D343G 6.4 inch 300 cd/m2 LCD Screen LCD Module | |
