Industrial LCD Panel Display

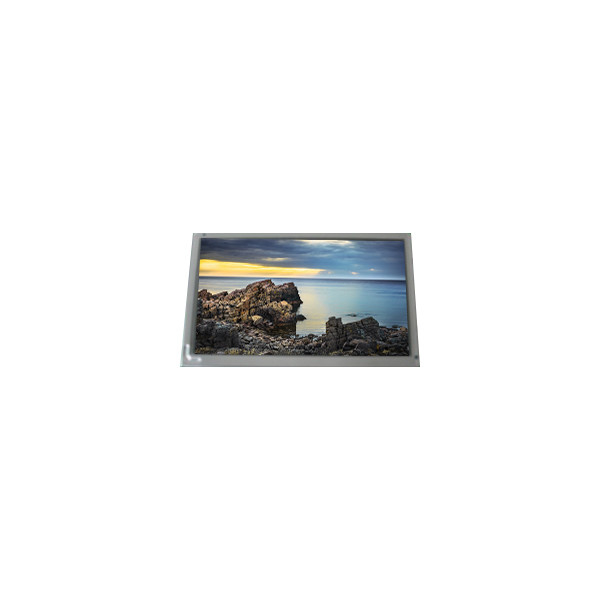

640*480 LQ064V3DG04 262K 290 cd/m2 LCD Display Screen

All Category

Floor Standing Digital Signage

640*480 LQ064V3DG04 262K 290 cd/m2 LCD Display Screen

Brand Name:	Sharp
Model Number:	LQ064V3DG04
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ064V3DG04

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 124PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

130.56(W)×97.92(H) Mm

Used For:

Industrial

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

640*480 LQ064V3DG04 262K 290 cd/m2 LCD Display Screen

LQ064V3DG04 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ064V3DG04
Diagonal Size	6.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 124PPI
Pixel Format	RGB Vertical Stripe
Active Area	130.56(W)×97.92(H) mm
Bezel Opening	135.3(W)×103.0(H) mm
Outline(mm)	161.3 × 117× 12.5 (H×V×D)
Treatment	Antiglare
Luminance	290 cd/m² (Typ.)
Contrast Ratio	350 : 1 (Typ.) (TM)
Viewing Angle	60/50/60/60 (Typ.)(CR≥5)
Response	6/25 (Typ.)(Tr/Td) ms
Good View at	3 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	2 pcsCCFL, No Driver
Mass	280g (Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), 31 pinsConnector
Voltage Supply	3.3/5.0V (Typ.)(VCC)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
640*480 LQ064V3DG04 262K 290 cd/m2 LCD Display Screen

LQ064V3DG04 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

LQ064V3DG04 LCD Panel Shipping and Package :

640*480 LQ064V3DG04 262K 290 cd/m2 LCD Display Screen 0

LQ064V3DG04 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

LQ064V3DG04 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

LQ064V3DG04 LCD Panel FAQ :

Q: When would you ship,IF I order LQ064V3DG04 now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
