LCD Screen Display Panel

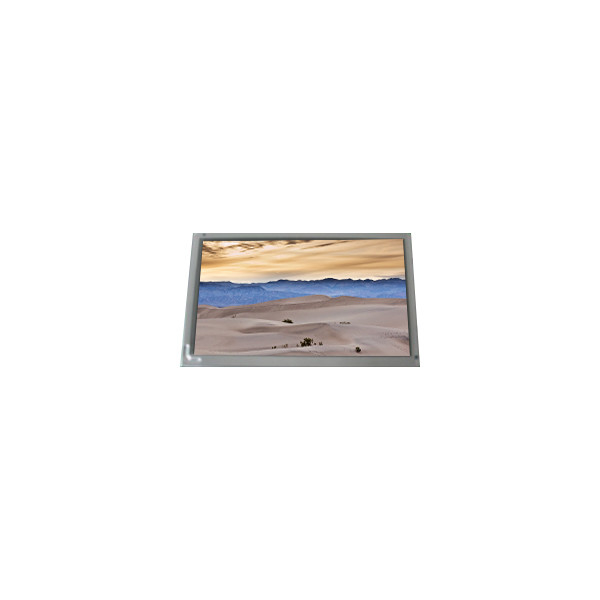

LQ058T5DRQ1 5.8 inch 640*350 TFT LCD Screen Display

All Category

Floor Standing Digital Signage

LQ058T5DRQ1 5.8 inch 640*350 TFT LCD Screen Display

Brand Name:	Sharp
Model Number:	LQ058T5DRQ1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ058T5DRQ1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×350 126PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

128.6(W)×70.35(H) Mm

Used For:

Automotive Display

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ058T5DRQ1 5.8 inch 640*350 TFT LCD Screen Display

LQ058T5DRQ1 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ058T5DRQ1
Diagonal Size	5.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×350 126PPI
Pixel Format	RGB Vertical Stripe
Active Area	128.6(W)×70.35(H) mm
Bezel Opening	-
Outline Dim.	147(H)×89(V)×12.5(D)mm
Treatment	Antiglare, Antireflection
Luminance	360 cd/m² (Typ.)
Contrast Ratio	100:1 (Min.) (TM)
View Direction	12 o'clock
Response Time	30/50 (Typ.)(Tr/Td)
Viewing Angle	65/65/65/40 (Typ.)(CR≥5)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	CCFL [1 pcs], 10K hours, W/O Driver
Weight	185g (Max.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit), 32 pinsConnector
Power Supply	3.3V (Typ.)(VCC)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²)
LQ058T5DRQ1 5.8 inch 640*350 TFT LCD Screen Display

LQ058T5DRQ1 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

LQ058T5DRQ1 LCD Panel Shipping and Package :

LQ058T5DRQ1 5.8 inch 640*350 TFT LCD Screen Display 0

LQ058T5DRQ1 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

LQ058T5DRQ1 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

LQ058T5DRQ1 LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order LQ058T5DRQ1 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel LQ058T5DRQ1 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
