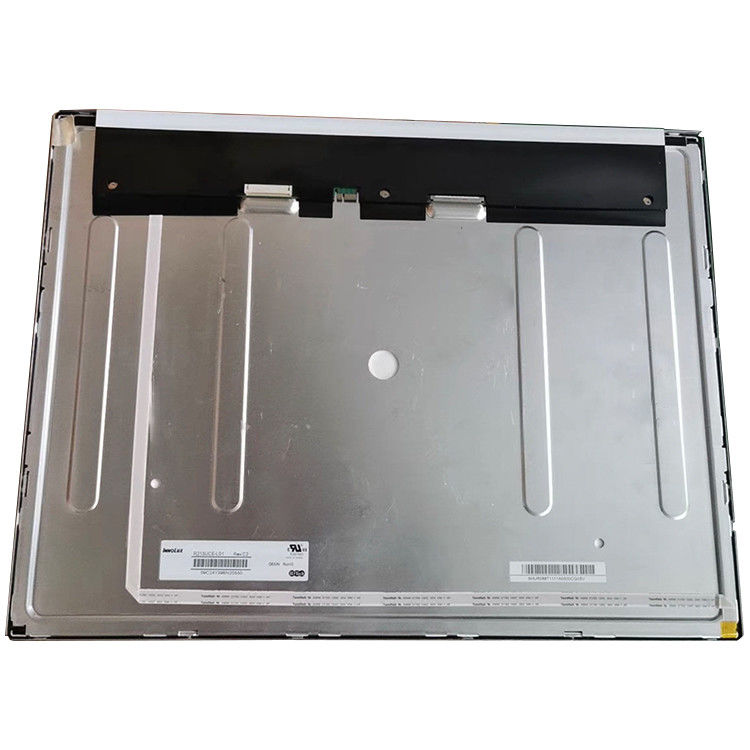

21.3 inch LCD screen R213UCE-L01 LCD monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R213UCE-L01 |
| Document: | R213UCE-L01.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R213UCE-L01 | Diagonal Size: | 21.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1600(RGB)×1200, UXGA 94PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 432(W)×324(H) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Luminance: | 500 Cd/m² (Typ.) |
| Contrast Ratio: | 1800:1 (Typ.) (TM) | Designed For: | Medical Imaging |
Product Description
21.3 inch LCD screen R213UCE-L01 LCD monitor
R213UCE-L01 LCD Panel Product details :
| Innolux LCD Screen R213UCE-L01 | |
|---|---|
| Brand | Innolux |
| Model P/N | R213UCE-L01 |
| Diagonal Size | 21.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×1200, UXGA 94PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 432(W)×324(H) mm |
| Outline Size | 457(W)×350(H)×19.79(D) mm |
| Bezel Opening | 438.2(W)×380(H) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1800:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Response Time | 8/8 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Weight | 2.17±0.10Kgs |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 21.3 inch LCD screen R213UCE-L01 LCD monitor | |
R213UCE-L01 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
R213UCE-L01 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
R213UCE-L01 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
R213UCE-L01 LCD Panel Shipping and Package :
R213UCE-L01 LCD Panel FAQ :
Q: If I order R213UCE-L01 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for Innolux R213UCE-L01 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of R213UCE-L01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for R213UCE-L01 ?
A: We accept T/T , Paypal , western union .
Want to Know more details about this product
