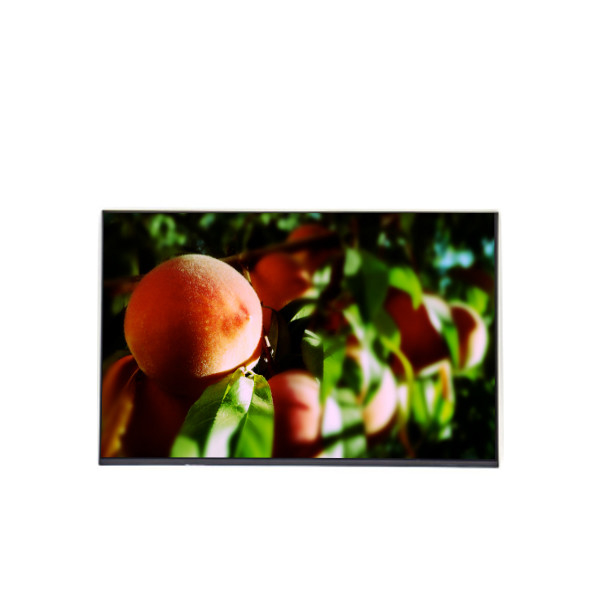

in Stock M190PTN01.1 CELL 19.0 inch 1440*900 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M190PTN01.1 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M190PTN01.1 CELL | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 408.24(W)×255.15(H) Mm |
| Application: | Desktop Monitor | Display Colors: | 16.7M 72%NTSC |
| Transmissivity: | 6.07% (Typ.)(with Polarizer) | Lamp Type: | No B/L, Without Driver |
Product Description
in Stock M190PTN01.1 CELL 19.0 inch 1440*900 LCD Display Screen
M190PTN01.1 CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | M190PTN01.1 CELL |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | - |
| Outline Size | 420.26(W)×265.67(H)×1.73(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Glass Depth | 0.70+0.70 mm |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 428g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Transmissivity | 6.07% (Typ.)(with Polarizer) |
| Lamp Type | No B/L, Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Driver IC | COFBuilt-in 6 source chips |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
M190PTN01.1 CELL LCD Screen Pre-Order Information :
Model Compatibility: It is crucial to confirm that your machine model is compatible with this LCD screen. If you are unsure about the compatibility, please contact us for assistance. We are here to help you verify and ensure that you are ordering the correct screen for your device.
Contact Information: To avoid any delivery issues, please double-check and confirm your phone number, address, and zip code before placing your order. Accurate contact information is essential for timely and successful delivery.
By following these steps, you can help ensure that your order process is efficient and that the product you receive is exactly what you need. If you have any questions or need further clarification, our customer service team is available to assist you.
M190PTN01.1 CELL LCD Panel Shipping and Package :
M190PTN01.1 CELL LCD Screen Shipping Information :
Prompt Shipping: After receiving your order, we will process and ship it as soon as possible. We aim to dispatch your item quickly to minimize any waiting time.
Logistics Options: Within the scope of available options, we will choose the safest and fastest logistics method to deliver your order. Our goal is to ensure that your LCD screen arrives in excellent condition and in a timely manner.
Specified Logistics: If you have a preferred logistics provider or specific shipping requirements, please inform us in advance. We will do our best to accommodate your request and ensure that your shipping preferences are met.
M190PTN01.1 CELL LCD Screen Service :
Customer Satisfaction: Your satisfaction is our priority. If you are not completely satisfied with your purchase, please contact us within 30 days of receiving the item. We are committed to resolving any issues you may have.
Return Process: Should you decide to return the product, it is important to contact us before shipping it back. Our team will provide you with detailed instructions on how to properly return the item to ensure a smooth and hassle-free process.
Refund Policy: Once we receive the returned item, we will promptly process a full refund. We aim to make the refund process as efficient as possible, ensuring that you receive your money back without unnecessary delays.
M190PTN01.1 CELL LCD Panel FAQ :
Q: Can You declare my order of M190PTN01.1 CELL to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of M190PTN01.1 CELL ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods M190PTN01.1 CELL ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of M190PTN01.1 CELL ?
A: We accept T/T , Paypal , western union .
Want to Know more details about this product
