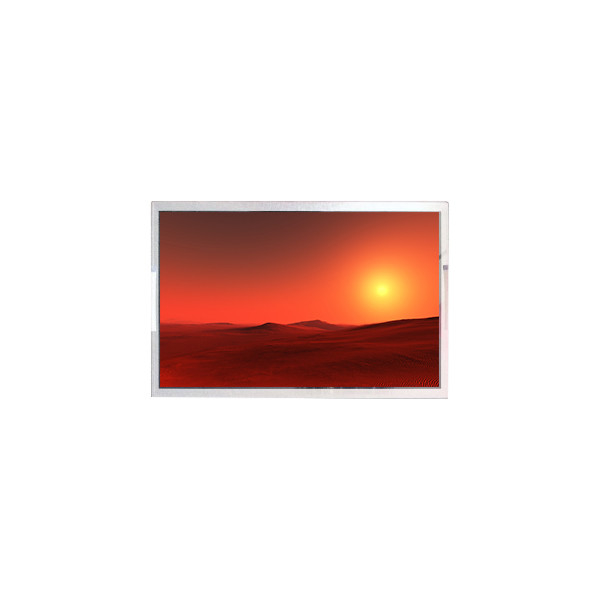

M190PW01 V80B 1440*900 19.0 inch LCD Display LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M190PW01 V80B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M190PW01 V80B | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 408.24(W)×255.15(H) Mm |
| Application: | Desktop Monitor | Light Source: | 13S4P WLED , 30K Hours , No Driver |
| Response Time: | 3.6/1.4 (Typ.)(Tr/Td) Ms | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
Product Description
M190PW01 V80B 1440*900 19.0 inch LCD Display LCD Screen
M190PW01 V80B LCD Panel Product details :
| Brand | AUO |
| Model P/N | M190PW01 V80B |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.24(W)×259.15(H) mm |
| Outline Dim. | 428 × 278 × 10.8 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) ms |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 13S4P WLED , 30K hours , No Driver |
| Weight | 1.45Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
M190PW01 V80B LCD Screen Pre-Order Information :
Model Compatibility: It is crucial to confirm that your machine model is compatible with this LCD screen. If you are unsure about the compatibility, please contact us for assistance. We are here to help you verify and ensure that you are ordering the correct screen for your device.
Contact Information: To avoid any delivery issues, please double-check and confirm your phone number, address, and zip code before placing your order. Accurate contact information is essential for timely and successful delivery.
By following these steps, you can help ensure that your order process is efficient and that the product you receive is exactly what you need. If you have any questions or need further clarification, our customer service team is available to assist you.
M190PW01 V80B LCD Panel Shipping and Package :
M190PW01 V80B LCD Screen Shipping Information :
Prompt Shipping: After receiving your order, we will process and ship it as soon as possible. We aim to dispatch your item quickly to minimize any waiting time.
Logistics Options: Within the scope of available options, we will choose the safest and fastest logistics method to deliver your order. Our goal is to ensure that your LCD screen arrives in excellent condition and in a timely manner.
Specified Logistics: If you have a preferred logistics provider or specific shipping requirements, please inform us in advance. We will do our best to accommodate your request and ensure that your shipping preferences are met.
M190PW01 V80B LCD Screen Service :
Customer Satisfaction: Your satisfaction is our priority. If you are not completely satisfied with your purchase, please contact us within 30 days of receiving the item. We are committed to resolving any issues you may have.
Return Process: Should you decide to return the product, it is important to contact us before shipping it back. Our team will provide you with detailed instructions on how to properly return the item to ensure a smooth and hassle-free process.
Refund Policy: Once we receive the returned item, we will promptly process a full refund. We aim to make the refund process as efficient as possible, ensuring that you receive your money back without unnecessary delays.
M190PW01 V80B LCD Panel FAQ :
Q: Can You declare my order of M190PW01 V80B to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of M190PW01 V80B via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of M190PW01 V80B ?
A: Of course!If you make a large order, we will give you a discount.
