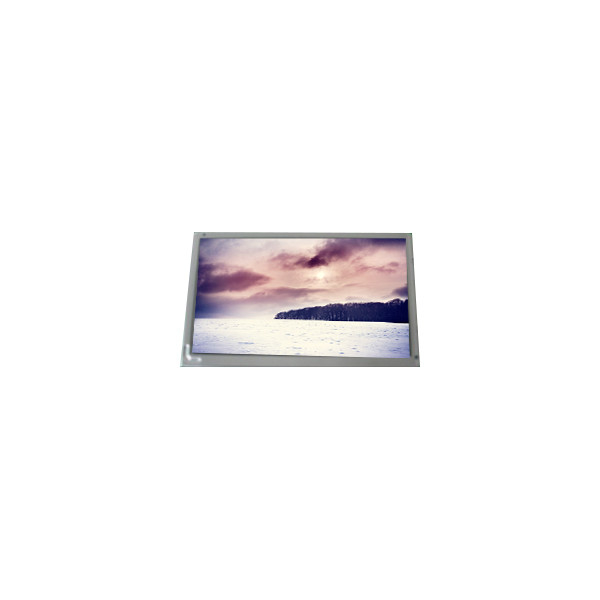

4.3 inch LQ043T1DG28 480*272 Touch TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ043T1DG28 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ043T1DG28 | Diagonal Size: | 4.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×272, WQVGA 128PPI |
| Pixel Format: | RGB Horizontal Stripe | Active Area: | 95.04(W)×53.856(H) Mm |
| Application: | Handheld & PDA、Portable Navigation、MP3 PMP | Touch Panel: | 4-wire Resistive Touch |
Product Description
4.3 inch LQ043T1DG28 480*272 Touch TFT LCD Module
LQ043T1DG28 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ043T1DG28 |
| Diagonal Size | 4.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480×272(RGB), WQVGA 128PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 95.04(W)×53.856(H) mm |
| Bezel Opening | - |
| Outline Dim. | 105.5(W)×67.2(H)×4.45(D) mm |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 22/8 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/55/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | WLED [9S1P], 10K hours, W/O Driver |
| Weight | 51.0g |
| Designed For | Handheld & PDA,Portable Navigation,MP3 PMP |
| Frame Rate | 60Hz |
| Touch Panel | 4-wire Resistive Touch |
| Interface Type | Parallel RGB (1 ch, 6-bit) + SPI, 67 pinsFPC |
| Power Supply | 3.3/3.3V (Typ.)(IOVCC/VCC) |
| Environment | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C |
| 4.3 inch LQ043T1DG28 480*272 Touch TFT LCD Module | |
LQ043T1DG28 LCD Screen Pre-Order Information :
Model Compatibility: It is crucial to confirm that your machine model is compatible with this LCD screen. If you are unsure about the compatibility, please contact us for assistance. We are here to help you verify and ensure that you are ordering the correct screen for your device.
Contact Information: To avoid any delivery issues, please double-check and confirm your phone number, address, and zip code before placing your order. Accurate contact information is essential for timely and successful delivery.
By following these steps, you can help ensure that your order process is efficient and that the product you receive is exactly what you need. If you have any questions or need further clarification, our customer service team is available to assist you.
LQ043T1DG28 LCD Panel Shipping and Package :
LQ043T1DG28 LCD Screen Shipping Information :
Prompt Shipping: After receiving your order, we will process and ship it as soon as possible. We aim to dispatch your item quickly to minimize any waiting time.
Logistics Options: Within the scope of available options, we will choose the safest and fastest logistics method to deliver your order. Our goal is to ensure that your LCD screen arrives in excellent condition and in a timely manner.
Specified Logistics: If you have a preferred logistics provider or specific shipping requirements, please inform us in advance. We will do our best to accommodate your request and ensure that your shipping preferences are met.
LQ043T1DG28 LCD Screen Service :
Customer Satisfaction: Your satisfaction is our priority. If you are not completely satisfied with your purchase, please contact us within 30 days of receiving the item. We are committed to resolving any issues you may have.
Return Process: Should you decide to return the product, it is important to contact us before shipping it back. Our team will provide you with detailed instructions on how to properly return the item to ensure a smooth and hassle-free process.
Refund Policy: Once we receive the returned item, we will promptly process a full refund. We aim to make the refund process as efficient as possible, ensuring that you receive your money back without unnecessary delays.
LQ043T1DG28 LCD Panel FAQ :
Q: Can You declare my order of LQ043T1DG28 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LQ043T1DG28 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LQ043T1DG28 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LQ043T1DG28 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
