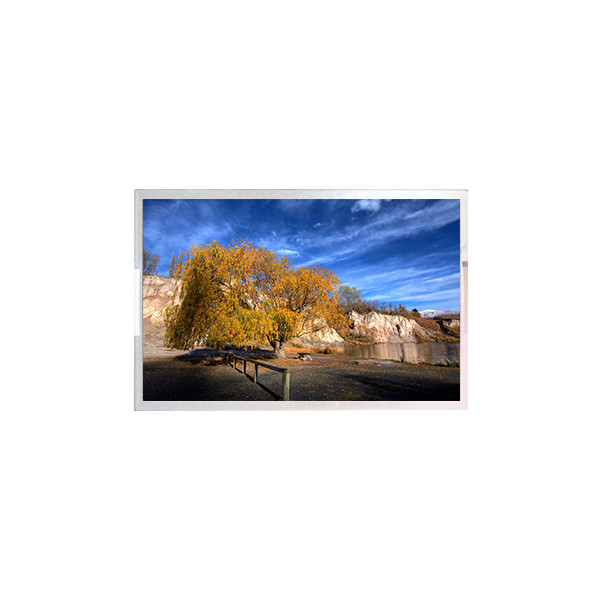

LM238WQ1-S1A1 23.8 inch 2560*1440 TFT LCD Panel LCD Screen

Brand Name:	L&T
Model Number:	LM238WQ1-S1A1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WQ1-S1A1

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

525.7(W)×295.7(H) Mm

Application:

Desktop Monitor

Display Colors:

16.7M 100% SRGB

View Direction:

Symmetry

Response Time:

14 (Typ.)(G To G)

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WQ1-S1A1 23.8 inch 2560*1440 TFT LCD Panel LCD Screen

LM238WQ1-S1A1 LCD Panel Product details :

Brand	L&T
Model P/N	LM238WQ1-S1A1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	525.7(W)×295.7(H) mm
Bezel Opening	-
Outline Dim.	536.096(W)×313.802(H) ×13(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 100% sRGB
Light Source	18S3P WLED , 30K hours , Without Driver
Weight	2.12/2.17Kgs (Typ./Max.)
Designed For	Desktop Monitor
Frame Rate	65Hz
Touch Panel	Without
Interface Type	LVDS (4 ch, 10-bit) , 92 pins Connector
Power Supply	10.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

LM238WQ1-S1A1 LCD Panel Attention:

Before placing an order for purchase, the buyer must confirm the screen model needs.

If you are not sure about the model of the screen, please contact us at the first time.

We will distinguish and prevent you from buying the wrong screen.

If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

LM238WQ1-S1A1 LCD Panel Shipping and Package :

LM238WQ1-S1A1 LCD Panel Shipping Information :

We are excited to offer the LM238WQ1-S1A1 LCD screens for purchase! While they may be categorized as used items, this presents an opportunity for a more budget-friendly option for those seeking top-quality displays. We want to assure our customers that we have taken great care in testing each screen to ensure its functionality and performance meet our high quality standards.

We are confident that our customers will be satisfied with their purchase and the value it brings to their projects. Thank you for considering our selection of LCD screens.

LM238WQ1-S1A1 LCD Panel Return Note :

Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.

Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.

LM238WQ1-S1A1 LCD Panel FAQ :

Q: Do you accept sample orders of LM238WQ1-S1A1 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of LM238WQ1-S1A1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How to make payment of LM238WQ1-S1A1 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of LM238WQ1-S1A1 ?

A: Of course!sample order is welcome !
