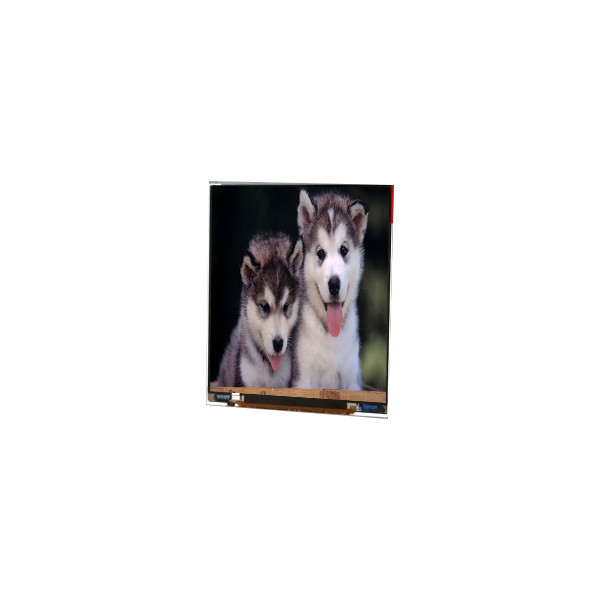

Original LPM055A351A 5.5 inch 1080*1920 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPM055A351A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPM055A351A | Diagonal Size: | 5.5" |
|---|---|---|---|
| Panel Type: | , CELL, FOB | Resolution: | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format: | RGB Vertical Stripe | Work Mode: | IPS, Normally Black, Transmissive |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Transmittance: | 4.07% (Typ.)(with Polarizer) |
| Light Source: | No B/L | Designed For: | Mobile Phone |
Product Description
Original LPM055A351A 5.5 inch 1080*1920 LCD Screen Module
LPM055A351A LCD Panel Product details :
| Brand | JDI |
| Model P/N | LPM055A351A |
| Diagonal Size | 5.5" |
| Panel Type | , CELL, FOB |
| Resolution | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.04(H)×127.29(V)×0.4(D) mm |
| Treatment | Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Plate Thickness | - |
| Transmittance | 4.07% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | 12.6g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| D-IC Detail | COG Built-in JD35695 |
| Interface Type | MIPI (4 data lanes), 40 pinsConnector |
| Power Supply | 1.8/3.1/5.5/-5.5V (Typ.)(VDDI/VDDH/AVDD/AVEE) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
LPM055A351A LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
LPM055A351A LCD Panel Shipping and Package :
LPM055A351A LCD Panel Shipping Policy :
All products will be checked carefully and packed in good condition before shipping.We e-mail all customers with tracking information immediately after the shipment for status tracking.
Item will be shipped within 1 business day after the payment has been received.
Customs fees and import duties for exports are buyer's responsibility.
LPM055A351A LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
LPM055A351A LCD Panel FAQ :
Q: Do you accept sample orders of LPM055A351A ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LPM055A351A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LPM055A351A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
