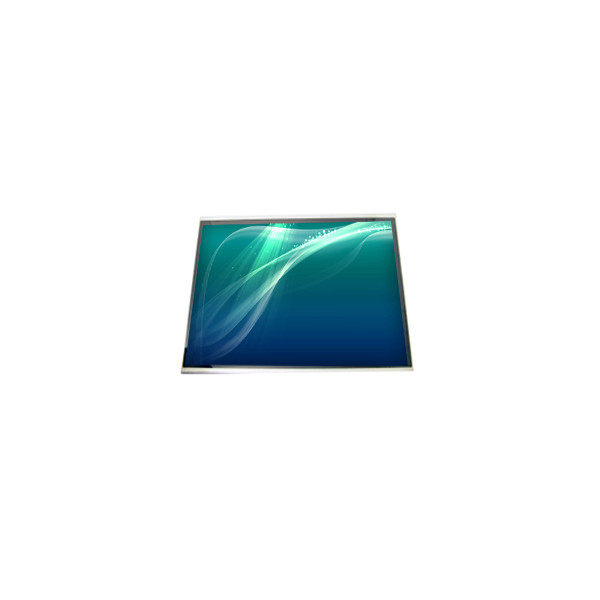

HSD055B8W1-Q00 5.5 inch 480*960 tft LCD Display

Brand Name:	HannStar
Model Number:	HSD055B8W1-Q00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD055B8W1-Q00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

480(RGB)×960, FWVGA+ 197PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

61.8768(W)×123.754(H) Mm

Used For:

Mobile Phone

Light Source:

No B/L

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD055B8W1-Q00 5.5 inch 480*960 tft LCD Display

HSD055B8W1-Q00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD055B8W1-Q00
Diagonal Size	5.5"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	480(RGB)×960, FWVGA+ 197PPI
Pixel Format	RGB Vertical Stripe
Active Area	61.8768(W)×123.754(H) mm
Bezel Opening	-
Outline Dim.	63.884(W)×129.458(H)×0.5(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	IPS Pro, Normally Black, Transmissive
Plate Thickness	0.25+0.25 mm
Transmittance	4.2% (Typ.)(with Polarizer)
Support Color	16.7M 70%NTSC
Light Source	No B/L
Weight	-
Designed For	Mobile Phone
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest ILI9806E, JD9161, OTM8019A, NT35512, HX8379C
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

HSD055B8W1-Q00 LCD Panel Attention:

Before placing an order for purchase, the buyer must confirm the screen model needs.

If you are not sure about the model of the screen, please contact us at the first time.

We will distinguish and prevent you from buying the wrong screen.

If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

HSD055B8W1-Q00 LCD Panel Shipping and Package :

HSD055B8W1-Q00 LCD Panel Shipping Information :

Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.

Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.

Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.

HSD055B8W1-Q00 LCD Panel Return Note :

Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.

Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.

HSD055B8W1-Q00 LCD Panel FAQ :

Q: How do you ship my goods HSD055B8W1-Q00 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of lcd display screen HSD055B8W1-Q00 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of HSD055B8W1-Q00 ?

A: 90 days warranty .
