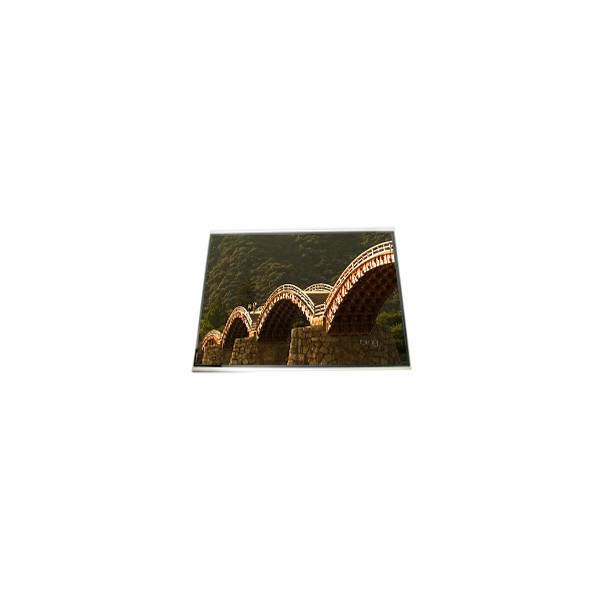

New 5.5 inch HSD055BHW5-C00 720*1280 LCD Screen LCD Display
Product Details:
Place of Origin: | China |
Brand Name: | HannStar |
Model Number: | HSD055BHW5-C00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | HSD055BHW5-C00 | Diagonal Size: | 5.5" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1280, WXGA 268PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×120.96(H) Mm |
Outline(mm): | 70.38 × 128.06× 0.5 (H×V×D) | Treatment: | Without Polarizer |
Luminance: | 0 Cd/m² | Used For: | Mobile Phone |
Product Description
New 5.5 inch HSD055BHW5-C00 720*1280 LCD Screen LCD Display
HSD055BHW5-C00 LCD Panel Product details :
Brand | HannStar |
Model P/N | HSD055BHW5-C00 |
Diagonal Size | 5.5" |
Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
Resolution | 720(RGB)×1280, WXGA 268PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 68.04(W)×120.96(H) mm |
Bezel Opening | - |
Outline(mm) | 70.38 × 128.06× 0.5 (H×V×D) |
Treatment | Without Polarizer |
Luminance | 0 cd/m² |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
Response | 12/13 (Typ.)(Tr/Td) ms |
Good View at | Symmetry |
Work Mode | IPS Pro, Normally Black, Transmissive |
Glass Thickness | 0.25+0.25 mm |
Transmissivity | 11.8% (Typ.)(without Polarizer) |
Color Depth | 16.7M 68%NTSC |
Backlight | No B/L |
Mass | - |
Used for | Mobile Phone |
Refresh Rate | - |
Touchscreen | Without |
Driver IC list | SuggestCOGOTM1289A, ILI9881C, HX8394F |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
HSD055BHW5-C00 LCD Panel Shipping and Package :
HSD055BHW5-C00 LCD Panel Damaged in Transit :
We take great pride in ensuring that our products are packaged and shipped with the utmost care. However, sometimes situations beyond our control can lead to an item arriving damaged. If this happens, there's no need to worry. We will make sure that the issue is resolved as quickly as possible so that you can enjoy your purchase without any further delays or stress.
Our team is committed to providing excellent customer service, and we understand that returning a damaged item can be frustrating. But rest assured, we will be there to guide you through the process and make it as smooth and hassle-free as possible. Our goal is to make sure that you are completely satisfied with your purchase, and we won't stop until that's achieved.
So, in the unlikely event that your item arrives damaged, don't hesitate to contact us. We'll work with you to find the best solution, whether that's a refund or a replacement product. And, most importantly, we'll do so with a smile and a positive attitude. After all, our top priority is your satisfaction, and we'll do whatever it takes to make sure that you're happy with your experience shopping with us.
Q: Can you test the lcd panel HSD055BHW5-C00 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order HSD055BHW5-C00 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order HSD055BHW5-C00 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd HSD055BHW5-C00 ?
A: 90 days .
