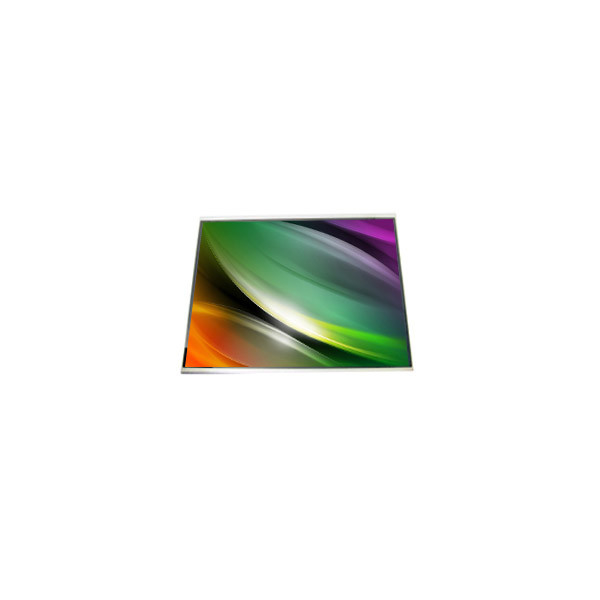

original HSD052BHW1-Q00 5.2 inch 720*1280 LCD Display Screen

Brand Name:	HannStar
Model Number:	HSD052BHW1-Q00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD052BHW1-Q00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1280, WXGA 282PPI

Pixel Format:

RGB Vertical Stripe

Display Mode:

IPS Pro, Normally Black, Transmissive

Support Color:

16.7M 70% NTSC

Treatment:

With Polarizer

Response Time:

14/16 (Typ.)(Tr/Td)

Designed For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

original HSD052BHW1-Q00 5.2 inch 720*1280 LCD Display Screen

HSD052BHW1-Q00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD052BHW1-Q00
Diagonal Size	5.2"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1280, WXGA 282PPI
Pixel Format	RGB Vertical Stripe
Active Area	64.8(W)×115.2(H) mm
Bezel Opening	-
Outline Dim.	66.8(W)×121.2(H)×0.5(D) mm
Luminance	0 cd/m²
View Direction	Symmetry
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Plate Thickness	0.25+0.25 mm
Support Color	16.7M 70% NTSC
Weight	-
Frame Rate	-
Treatment	With Polarizer
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	14/16 (Typ.)(Tr/Td)
Operating Mode	IPS Pro, Normally Black, Transmissive
Transmittance	3.3% (Typ.)(with Polarizer)
Light Source	No B/L
Designed For	Mobile Phone
Touch Panel	Without
D-IC Detail	COG Suggest OTM1284A, OTM1289A, HX8394F, ILI9881C, R61350, NT35521S, JD9365
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C

HSD052BHW1-Q00 LCD Panel Attention:

Before placing an order for purchase, the buyer must confirm the screen model needs.

If you are not sure about the model of the screen, please contact us at the first time.

We will distinguish and prevent you from buying the wrong screen.

If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

HSD052BHW1-Q00 LCD Panel Shipping and Package :

HSD052BHW1-Q00 LCD Panel Incorrect Fit or Other Issues:

At our company, we value your satisfaction as our top priority. If you encounter any issues with our products, we encourage you to contact us immediately. We are dedicated to providing the best possible solutions to ensure that you receive a product that meets your needs.

In the event that our product does not fit your requirements, we will work closely with you to find a suitable solution. We offer a range of options such as arranging a return, issuing a refund, or sending a replacement product that better suits your needs. Our team is always available to assist you throughout the entire process.

We understand that purchasing products online can be challenging, which is why we strive to provide clear and accurate information regarding our products. Should you have any questions or concerns, please feel free to reach out to us so that we may assist you in any way possible.

Thank you for choosing our products and we look forward to providing you with the best customer service possible.

HSD052BHW1-Q00 LCD Panel FAQ :

Q: Can You declare my order of HSD052BHW1-Q00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of HSD052BHW1-Q00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of HSD052BHW1-Q00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of HSD052BHW1-Q00 ?

A: The order will be shipped within 2-3 working days after received your payment.
