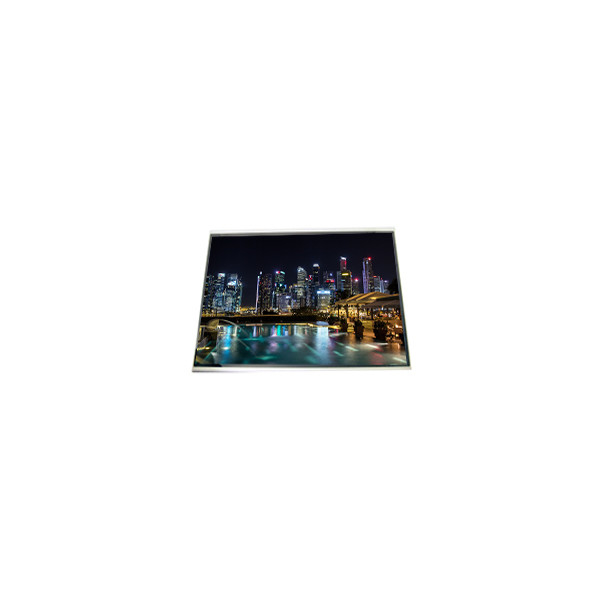

HSD060BHW4-D00-T00 6.0 inch LCD Screen 720*1440 LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD060BHW4-D00-T00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD060BHW4-D00-T00 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1440 268PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×136.08(H) Mm |
| Application: | Mobile Phone | Lamp Type: | No B/L |
| Driver IC: | COG Suggest HX8394F, NT35521S, ILI9881C, JD9365D, OTM1289A_B6 | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Product Description
HSD060BHW4-D00-T00 6.0 inch LCD Screen 720*1440 LCD Panel
HSD060BHW4-D00-T00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD060BHW4-D00-T00 |
| Diagonal Size | 6.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×136.08(H) mm |
| Bezel Opening | - |
| Outline Size | 70.04(W)×141.897(H)×0.4(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Glass Depth | 0.20+0.20 mm |
| Transmissivity | 3.1% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 70%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | PCAP, I²C |
| Driver IC | COG Suggest HX8394F, NT35521S, ILI9881C, JD9365D, OTM1289A_B6 |
| Panel Weight | - |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
HSD060BHW4-D00-T00 LCD Panel Shipping and Package :
We understand how important it is to receive your package in a timely and hassle-free manner. Therefore, we kindly request that you double-check your shipping information before placing an order with us. This will ensure that your package is delivered to the correct address and on time.
We strongly advise that you include your full name when providing your shipping address. This will help the courier company identify you as the recipient and reduce the chance of any delivery errors. We want to make sure that your package is delivered to you as soon as possible, and including your full name will help us achieve that.
Please note that inaccurate or undeliverable addresses can result in delayed or failed delivery attempts. We cannot be held responsible for any complications that may arise due to incorrect shipping information. Therefore, we urge you to take the time to verify your address details before submitting your order.
Thank you for your cooperation and trust in our services. We look forward to delivering your package promptly and securely.
Q: Can You declare my order of HSD060BHW4-D00-T00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of HSD060BHW4-D00-T00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of HSD060BHW4-D00-T00 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
