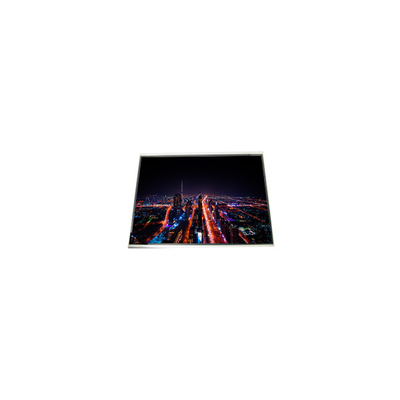

Original HSD060BHW4-P00 6.0 inch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD060BHW4-P00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD060BHW4-P00 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1440 268PPI |
| Pixel Format: | RGB Vertical Stripe | Operating Mode: | IPS Pro, Normally Black, Transmissive |
| Application: | Mobile Phone | Lamp Type: | No B/L |
| Display Colors: | 16.7M 70%NTSC | Glass Depth: | 0.40+0.40 Mm |
Product Description
Original HSD060BHW4-P00 6.0 inch LCD Display Screen
HSD060BHW4-P00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD060BHW4-P00 |
| Diagonal Size | 6.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×136.08(H) mm |
| Bezel Opening | - |
| Outline Size | 70.04(W)×141.897(H)×0.8(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.40+0.40 mm |
| Display Colors | 16.7M 70%NTSC |
| Frequency | - |
| Weight | - |
| Surface | Without Polarizer |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Transmissivity | 3.6% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Mobile Phone |
| Driver IC | COGSuggest OTM1287A, OTM1289A, OTM1290A-CH11, HX8394-F, ILI9881C, NT35521S, JD9365D |
| Signal Interface | MIPI (2 data lanes) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
