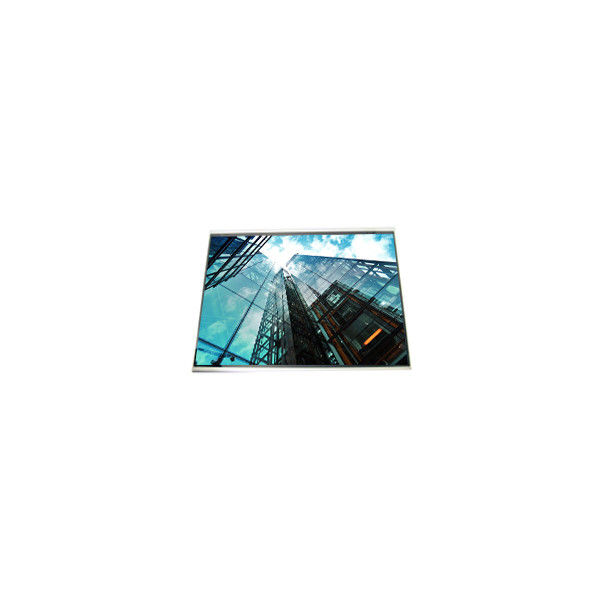

5.7 inch HSD057BHW1-D00-T00 720*1440 LCD Screen FOR Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD057BHW1-D00-T00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD057BHW1-D00-T00 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1440 282PPI |
| Pixel Format: | RGB Vertical Stripe | Operating Mode: | IPS Pro, Normally Black, Transmissive |
| Application: | Mobile Phone | Display Colors: | 16.7M 68%NTSC |
| Touch Panel: | PCAP | D-IC Detail: | COG Suggest HX8394F, ILI9881C, JD3965D, OTM1287A, OTM1289A, NT35521S |
Product Description
5.7 inch HSD057BHW1-D00-T00 720*1440 LCD Screen FOR Mobile Phone
HSD057BHW1-D00-T00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD057BHW1-D00-T00 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×129.6(H) mm |
| Bezel Opening | - |
| Outline Dim. | 66.8(H)×135.29(V)×0.4(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Plate Thickness | 0.20+0.20 mm |
| Transmittance | 3.0% (Typ.)(with Polarizer) |
| Support Color | 16.7M 68%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | PCAP |
| D-IC Detail | COG Suggest HX8394F, ILI9881C, JD3965D, OTM1287A, OTM1289A, NT35521S |
| Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
HSD057BHW1-D00-T00 LCD Panel Shipping and Package :
At our company, we take quality assurance very seriously. We understand that our customers rely on us to provide them with top-notch products. That's why we put all our parts through rigorous testing to ensure that they meet the highest quality standards. We leave nothing to chance and strive to exceed our customers' expectations.
When it comes to packaging, we also take great care to ensure that our products arrive at your doorstep in perfect condition. Our team carefully packs each item with precision and care, so you can rest easy knowing that your order will arrive safely and without any damage.
We are committed to delivering products that not only meet but exceed our customers' expectations. We take pride in our work and our attention to detail, and know that you will be satisfied with the quality of our products and our commitment to exceptional customer service.
Rest assured that when you choose our company, you can expect only the best in quality assurance and customer satisfaction.
Q: Can you tested the HSD057BHW1-D00-T00 before shipping ?
A: Of course , our lcd panel HSD057BHW1-D00-T00 was Strictly tested before shipping.
Q: How to order HannStar HSD057BHW1-D00-T00 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd HSD057BHW1-D00-T00 ?
A: 90 days .
Q: What happen if the lcd panel HSD057BHW1-D00-T00 I received can't work ?
A: HSD057BHW1-D00-T00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
