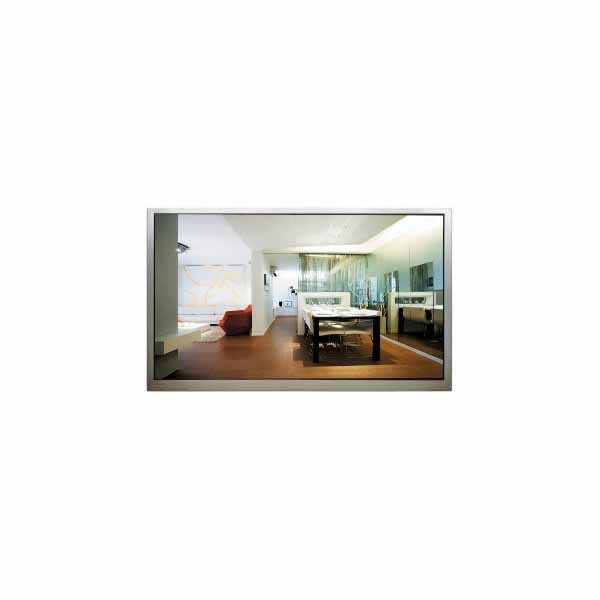

HSD101KFW1-C10 10.1 inch 1024*600 LCD Panel FOR Automotive Display

Brand Name:	HannStar
Model Number:	HSD101KFW1-C10
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD101KFW1-C10

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 117PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Designed For:

Automotive Display

Lamp Type:

6S7P WLED , 20K Hours , Without Driver

Contrast Ratio:

800:1 (Typ.) (TM)

Response Time:

25 (Typ.)(Tr+Td)

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD101KFW1-C10 10.1 inch 1024*600 LCD Panel FOR Automotive Display

HSD101KFW1-C10 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD101KFW1-C10
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	226(W)×128.5(H) mm
Outline Size	235(W)×143(H)×6.3(D) mm
Brightness	500 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	262K/16.7M 45%NTSC
Frequency	60Hz
Weight	265/275g (Typ./Max.)
Surface	Hard coating (3H)
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	IPS Pro, Normally Black, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	6S7P WLED , 20K hours , Without Driver
Touch Screen	Without
Application	Automotive Display
Signal Interface	LVDS (1 ch, 6/8-bit), 60 pinsFPC
Input Voltage	3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -30 ~ 85 °C; Vibration Level: 2.9G (28.4 m/s²)

HSD101KFW1-C10 LCD Panel Attention:

Before placing an order for purchase, the buyer must confirm the screen model needs.

If you are not sure about the model of the screen, please contact us at the first time.

We will distinguish and prevent you from buying the wrong screen.

If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

HSD101KFW1-C10 LCD Panel Shipping and Package :

HSD101KFW1-C10 LCD Panel Shipping Information :

Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.

Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.

Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.

HSD101KFW1-C10 LCD Panel Return Note :

Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.

Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.

HSD101KFW1-C10 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of HSD101KFW1-C10 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of HSD101KFW1-C10 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of HSD101KFW1-C10 ?

A: Of course!sample order is welcome !
