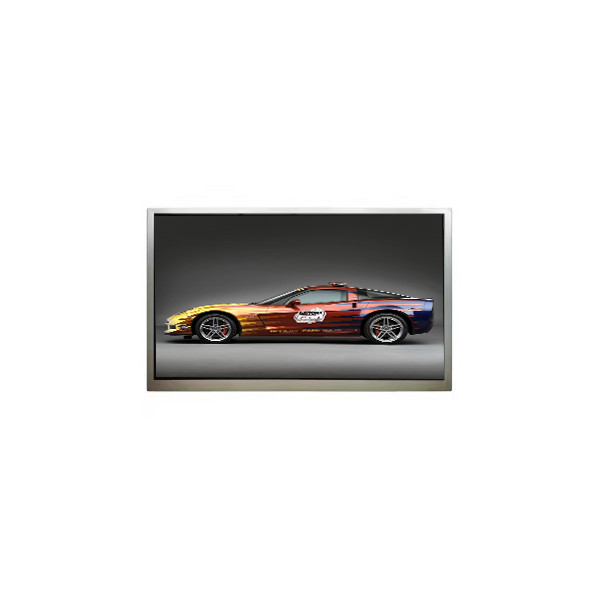

9.7 inch Original HSD097BXN1-A10 1024*768 LCD Panel LCD Screen
Product Details:
Place of Origin: | China |
Brand Name: | HannStar |
Model Number: | HSD097BXN1-A10 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | HSD097BXN1-A10 | Diagonal Size: | 9.7" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1024(RGB)×768, XGA 132PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 196.608(W)×147.456(H) Mm |
Used For: | Pad & Tablet、Digital Photo Frame | Environment: | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
Display Colors: | 16.7M 52%NTSC | Lamp Type: | No B/L |
Product Description
9.7 inch Original HSD097BXN1-A10 1024*768 LCD Panel LCD Screen
HSD097BXN1-A10 LCD Panel Product details :
Brand | HannStar |
Model P/N | HSD097BXN1-A10 |
Diagonal Size | 9.7" |
Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
Resolution | 1024(RGB)×768, XGA 132PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 196.608(W)×147.456(H) mm |
Bezel Opening | - |
Outline Size | 204.908(W)×156.756(H)×0.8(D) mm |
Surface | Without Polarizer |
Brightness | 0 cd/m² |
Contrast Ratio | 500:1 (Typ.) (TM) |
Viewing Angle | 80/70/80/80 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 9 o'clock |
Response Time | 6/14 (Typ.)(Tr/Td) |
Glass Depth | 0.40+0.40 mm |
Transmissivity | 12.1% (Typ.)(without Polarizer) |
Display Colors | 16.7M 52%NTSC |
Lamp Type | No B/L |
Frequency | - |
Touch Screen | Without |
Driver IC | COGSuggest HX8282-A06DPD300-A+HX8695-B02BPD250-A, LI6150H2-9G+ILI5801-9G |
Panel Weight | - |
Application | Pad & Tablet,Digital Photo Frame |
Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
HSD097BXN1-A10 LCD Panel Shipping and Package :
Dismantling is the process of taking apart an object or structure piece by piece. This can be a daunting task, but with the right approach and tools, it can be accomplished efficiently and safely.
The first step in dismantling is to develop a plan. This plan should include a detailed outline of the process, including which parts should be removed first and how they will be taken apart. It is important to ensure that the plan is comprehensive and covers all possible scenarios that may arise during the dismantling process.
Once the plan is in place, the next step is to gather the necessary tools and equipment. This may include hand tools, power tools, lifting and hoisting equipment, and any other necessary safety gear such as gloves, helmets, and safety glasses.
Before starting the dismantling process, it is important to ensure that the area surrounding the structure is safe and secure. This may include barricading the area, posting warning signs, and shutting off any electrical or gas lines.
Once the safety measures are in place, the dismantling process can begin. The first step is usually to remove any fixtures or attachments such as doors, windows, and plumbing fixtures. After this, the roof and exterior walls can be removed, followed by the interior walls and flooring.
Throughout the dismantling process, it is important to take frequent breaks and remain alert to any potential hazards. It is also crucial to properly dispose of any waste materials and follow any local regulations regarding waste disposal.
In conclusion, dismantling can be a challenging task, but with the right approach, it can be completed safely and efficiently. By developing a detailed plan, gathering the necessary tools and equipment, and taking appropriate safety measures, the dismantling process can be a successful one.
Q: Can you give me a discount if I need a large quantity of HSD097BXN1-A10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD097BXN1-A10 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of HSD097BXN1-A10 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
