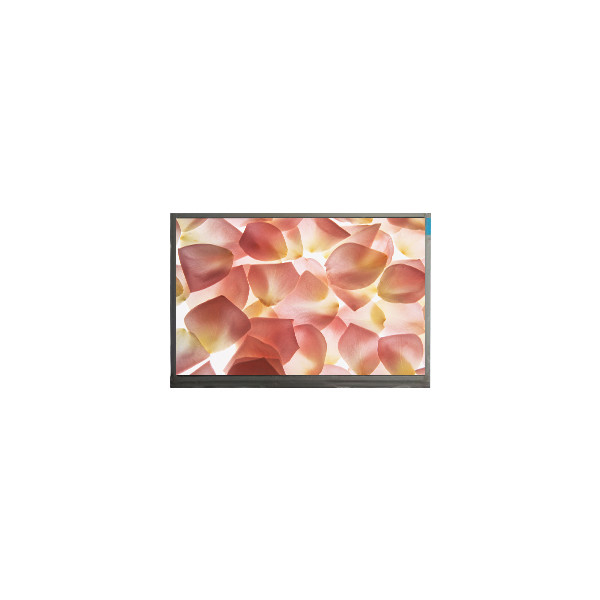

E080AWP4 R1 8.0 inch 800*480 TFT-LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | E080AWP4 R1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | E080AWP4 R1 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 800(RGB)×480, WVGA 116PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 176.64(W)×99.36(H) Mm |
| Designed For: | Automotive Display | Color Depth: | 16.2M 48%NTSC |
Product Description
E080AWP4 R1 8.0 inch 800*480 TFT-LCD Display Screen
E080AWP4 R1 LCD Panel Product details :
| Brand | IVO |
| Model P/N | E080AWP4 R1 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | - |
| Outline Size | 185.14(W)×107.16(H)×1.43(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | 16.2M 48%NTSC |
| Frequency | 60Hz |
| Weight | 16.0g (Max.) |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 18 (Typ.)(Tr+Td) |
| Transmissivity | 5.3% (Typ.) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 60 pinsFPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 90 °C |
E080AWP4 R1 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
E080AWP4 R1 LCD Panel Shipping and Package :
E080AWP4 R1 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
E080AWP4 R1 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
E080AWP4 R1 LCD Panel FAQ :
Q: If I order E080AWP4 R1 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for E080AWP4 R1 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of E080AWP4 R1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of E080AWP4 R1 ?
A: 90 days warranty .
